Name: PFA579lift-DS1500A Rugged Industrial Floor Scale with Foldable Load Plate Easy Storage
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: PFA579lift-DS1500A
Availability: InStock

Home Products Mettler Toledo Industrial Scales

PFA579lift-DS1500A Rugged Industrial Floor Scale with Foldable Load Plate Easy Storage

Product Details:

Place of Origin:	China
Brand Name:	Mettler Toledo
Model Number:	PFA579lift-DS1500A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Indicator	Maximum Capacity:	1500 Kg
Readability:	200 G	Material:	Stainless Steel
Readability (Certified):	500 G	Platform Size (LxHxW):	1,000 Mm X 80 Mm X 1,000 Mm
Protection Rating:	IP68	Scale Interface:	Analog SICSpro
Repeatability, Typical:	100 G	Repeatability (sd):	100 G
Floor Scale Type:	All Floor Scales	Hazardous Area:	SICSpro: Safe Area Only! Analog: ATEX Cat. 3GD
Highlight:	rugged industrial floor scale , foldable load plate scale , Mettler Toledo floor scale

PFA579lift-DS1500A Rugged Industrial Floor Scale with Foldable Load Plate Easy Storage

Product Attributes

Product	Mettler Toledo Indicator
Maximum Capacity	1500 kg
Readability	200 g
Material	Stainless Steel
Readability (Certified)	500 g
Platform Size (LxHxW)	1,000 mm x 80 mm x 1,000 mm
Protection Rating	IP68
Scale Interface	Analog SICSpro
Repeatability, typical	100 g
Repeatability (sd)	100 g
Floor Scale Type	All Floor Scales
Hazardous Area	SICSpro: safe area only! analog: ATEX Cat. 3GD

Product Description

The PFA579lift-DS1500A is a heavy-duty, low-profile industrial floor scale engineered for demanding environments where durability, efficiency, and space optimization are critical. Its standout feature is a unique foldable load plate, which allows the scale to be compactly stored when not in use, making it an ideal solution for workshops, warehouses, and logistics centers with limited space. Designed to handle capacities up to 1500kg, it combines robust construction with advanced weighing technology for reliable performance day in and day out.

Key Features & Technical Specifications

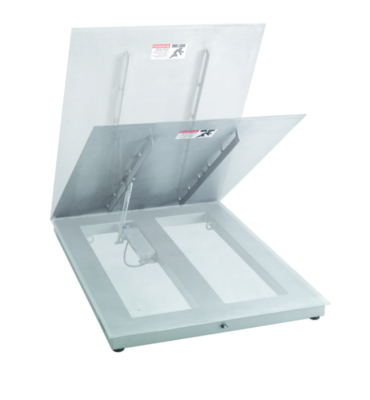

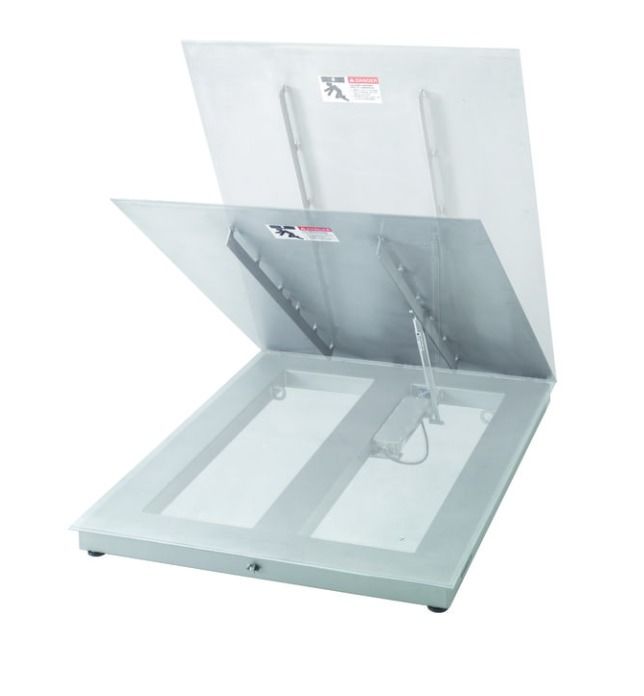

1. Innovative Foldable Design

Space-Saving Solution: The scale's deck is engineered to fold vertically, reducing its footprint by over 50% for compact, upright storage against a wall or in a corner.
Easy Operation: Features integrated handles and a simple, robust locking mechanism for safe and effortless folding/unfolding by a single operator.
Protected Components: The folding mechanism is designed to protect the critical load cells and junction box during storage and transport.

2. Rugged Industrial Construction

High Capacity: Rated for a maximum capacity of 1500 kg (3300 lbs), suitable for pallets, drums, machinery, and large raw materials.
Durable Deck: Constructed from solid, reinforced structural steel with a full 579mm x 579mm (22.8" x 22.8") weighing surface.
Protective Finish: Features a thick, epoxy-powder coat paint finish that is highly resistant to impact, abrasion, corrosion, and chemicals, ensuring longevity in harsh conditions.
Low Profile: The low height design allows for easy roll-on/roll-off access for heavy items using pallet jacks or forklifts.

3. Advanced Weighing Technology

Precision Load Cells: Equipped with four high-precision, hermetically sealed shear beam load cells made from durable alloy steel. These are rated for IP67 protection, making them dust-tight and capable of withstanding temporary immersion in water (e.g., washdowns).
Stable & Accurate Performance: Provides reliable and consistent readings with high accuracy, typically compliant with OIML R60 Class III or NTEP Class III standards.
Stainless Steel Hardware: All fasteners and the load cell protective covers are made from stainless steel for superior corrosion resistance.

4. Integrated Electronics & Display

Waterproof Junction Box: A sealed, IP67-rated junction box collects signals from all four load cells and provides a single, summed output to the indicator.
Indicator Compatibility: The scale is typically supplied with or is compatible with a robust industrial digital weight indicator. Common features include:
- Bright, Easy-to-Read LCD Display
- IP Rating for dust/water resistance
- Multiple Units (kg, lb, oz, etc.)
- Functions such as tare, zero, counting, percentage weighing, and dynamic weighing
- Data Interfaces: Options for RS-232, USB, or Ethernet outputs

5. Safety & Usability

Non-Slip Surface: The weighing surface often features a diamond-plate or checkered pattern for superior traction and operator safety.
Ramp Options: May include bolt-on or flip-up ramps for smoother loading (can be an optional accessory).
Overload Protection: The design incorporates mechanical stops to protect the load cells from damage due to side loads or shock overloads beyond its rated capacity.

Summary

The PFA579lift-DS1500A is more than just a scale; it's a smart, space-saving industrial tool. It delivers the unwavering durability and high precision required for heavy-duty weighing tasks while solving the common problem of clutter with its innovative fold-and-store design. It is the perfect blend of brute strength and practical ingenuity for the modern industrial workspace.

Specifications

Model	PFA579lift-DS1500A
Capacity	1500 kg / 3300 lb
Platform Size	579 x 579 mm / 22.8" x 22.8"
Division (d)	0.5 kg / 1 lb
Accuracy Class	Class III (OIML R76 / NTEP)
Deck Finish	Epoxy Powder Coat
Material	Structural Steel
Load Cells	4 x Alloy Steel, IP67 (Shear Beam type)
Junction Box	IP67 Rated, Stainless Steel
Key Feature	Foldable Load Plate for Storage
Profile (Height)	Low Profile (e.g., 80mm / 3.1")
Legal for Trade	OIML
Environment	Wet & Harsh Wet (≥IP66)
Dimensions/Platform Size	≤1000 mm, ≤40"
Platform Type	Floor scale
Hygienic Design	No
Load Plate	Smooth With load plate
