Name: Design and Functionality of Dual-Ended Beam Load Cells for Force Measurement
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: S-Type Load Cells
Availability: InStock

Home Products

Design and Functionality of Dual-Ended Beam Load Cells for Force Measurement

Product Details:

Place of Origin:	China
Brand Name:	Mettler Toledo
Model Number:	S-Type Load Cells

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Capacities Range:	SLD430/SLD530 Load Cells Is 5,000 Lb To 250,000 Lb
Accuracy:	OIML C3, C6, NTEP III M 5,000d	Hazardous Approvals:	ATEX, FM, CFM
Capacity Range:	SLD425/SLD525 Load Cells Is 1,000 Lb To 75,000 Lb	SLD430/SLD530:	NTEP Class III 5000d/ IIIL 10000d Approval
Highlight:	dual-ended beam load cells , force measurement load cells , Mettler Toledo load cells

Design and Functionality of Dual-Ended Beam Load Cells for Force Measurement

Attribute	Value
Product	Mettler Toledo Load Cell
Capacities range (SLD430/SLD530)	5,000 lb to 250,000 lb
Accuracy	OIML C3, C6, NTEP III M 5,000d
Hazardous Approvals	ATEX, FM, cFM
Capacity range (SLD425/SLD525)	1,000 lb to 75,000 lb
SLD430/SLD530 Approvals	NTEP class III 5000d/ IIIL 10000d approval

Design and Application of S-Type Load Cells for Tension and Compression Force Measurement

1. Economical Load Sensors for Industrial Applications

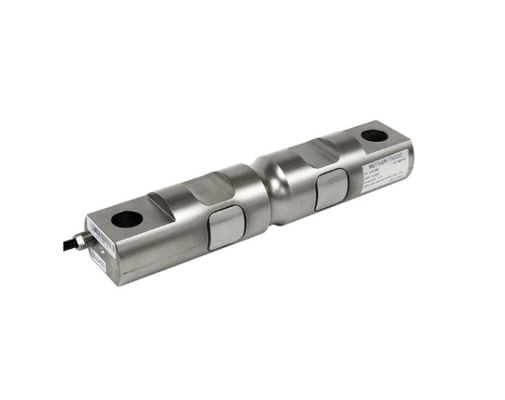

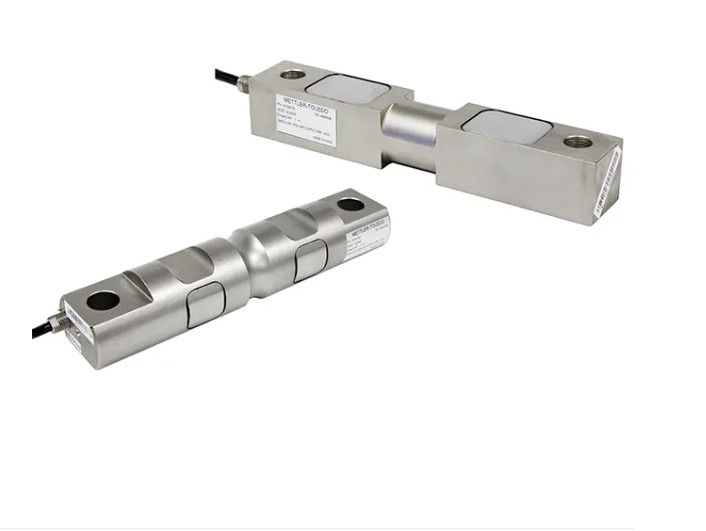

Dual-ended beam load cells are used in tank and hopper weighing applications that require center loading to minimize sensitivity to off-center forces. The SLD425 and SLD430 are constructed of durable alloy steel, while the SLD525 and SLD530 are made of stainless steel alloy for applications that require increased corrosion resistance. Select the optimal dual-ended beam load cell based on your system's capacity requirements.

2. Reliable Design, High Sensitivity

These load cells use proven strain gauge technology and have an IP67 ingress protection rating to withstand tough industrial environments. The high sensitivity output enables the use of economical analog weight indicators, providing a lower-cost system solution.

3. Matching Installation Hardware

To ensure the utmost safety and performance, dual-ended beam load cells can be paired with METTLER TOLEDO mounting hardware to become complete compression weigh module assemblies. These assemblies provide engineered components that deliver proven safety and performance.

FAQ

1. What is a double-ended shear beam load cell?

A double-ended shear beam load cell is a load cell with two mounting points that are opposite each other. The load cell is mounted by bolting each mounting point to the structure that will support the load. This type of load cell is typically used in larger weighing applications and in applications where the load needs to be centered on the load cell.

The load cell contains a strain gauge that measures the stress or strain on the load cell caused by the weight of the object being weighed. This stress or strain is converted into an electrical signal that is proportional to the weight of the object. The electrical signal can be transmitted to a display or a control system for further processing.

2. What is the capacity of METTLER TOLEDO's dual-ended beam load cells?

The capacity range for SLD425/SLD525 load cells is 1,000 lb to 75,000 lb. The capacity range for SLD430/SLD530 load cells is 5,000 lb to 250,000 lb.

3. What approvals do the dual-ended beam load cells carry?

NTEP class III 5000d/ IIIL 10000d approval (SLD430/SLD530)
FM approval standard for each cell
