Name: SWC515-A SS 50t Weigh Module - Stainless Steel Load Cell for Tank & Silo Weighing Systems
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWC515-A SS 50t
Availability: InStock

Home Products

SWC515-A SS 50t Weigh Module - Stainless Steel Load Cell for Tank & Silo Weighing Systems

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC515-A SS 50t

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	110,000 Lb (50,000 Kg)
Material:	Stainless Steel V2A (AISI 304)	Metrology:	OIML C3, NTEP IIIL 10,000
Load Cell:	0782/GD, 13 M Cable	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX， FM	Criticality:	Standard
Highlight:	stainless steel weigh module , 50t load cell for tanks , silo weighing system load cell

SWC515-A SS 50t Weigh Module - Stainless Steel Load Cell for Tank & Silo Weighing Systems

Product Overview

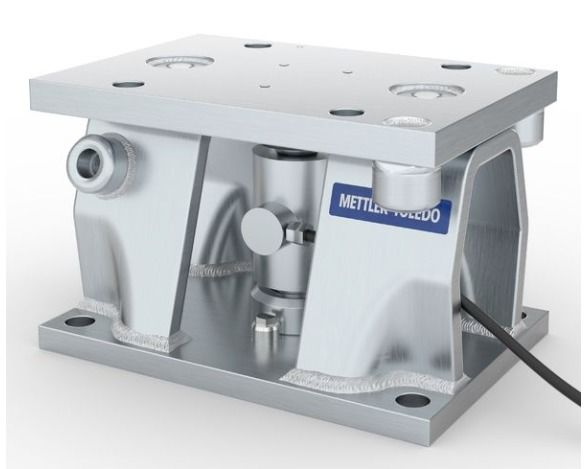

A compression weigh module designed for tank and silo weighing applications. When weight is applied, the top plate and base plate compress toward each other. This module can be directly attached to the ground, piers, or structural beams, making it ideal for large platform scales including truck and railroad track scales.

Key Features

Multi-Purpose Design: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors with high accuracy stainless steel hermetic load cell
Enhanced Safety: Mechanical safety features including 360° self-checking, lift-off & down-stops protections with hazardous approvals
Easy Installation: SafeLock™ plates prevent damage during installation with integrated space for hydraulic jack
Durable Construction: Stainless steel V2A (AISI 304) material with IP68/IP69k protection rating

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	110,000 lb (50,000 kg)
Material	Stless Steel V2A (AISI 304)
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	0782/GD, 13 m cable
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM
Criticality	Standard

Applications

Ideal for tank, hopper, and silo weighing applications with capacity ranges from 3 kg to 300 tons. Perfect for industrial environments requiring durable, high-capacity weighing solutions.
