Portable SUS304 Stainless Steel Floor Scale 2000kg 1500x1500mm RS232 Data Output IP68 Washdown Weighing

Large Image : Portable SUS304 Stainless Steel Floor Scale 2000kg 1500x1500mm RS232 Data Output IP68 Washdown Weighing

Product Details:

Place of Origin:	CHINA
Brand Name:	SMARTWEIGH
Certification:	ISO, CE
Model Number:	SW-P504D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Carton box with wooden pallet
Delivery Time:	3-8 weeks
Payment Terms:	LC, TT, Western Union,
Supply Ability:	1000 sets per month

Contact Now

Detailed Product Description

Model:	SW-P504D	Capacity:	2000kg
Platform Size:	1500 X 1500mm	Selectable Capacity Range:	500kg - 2000kg
Selectable Platform Sizes:	800x800 / 1000x1000 / 1200x1200 / 1500x1500mm	Division:	500g
Material:	Full SUS304 Stainless Steel	Protection Class:	IP68
Accuracy:	High Accuracy, OIML Class III	Indicator:	SUS304 Stainless Steel IP68 Digital Indicator
Power Supply:	Rechargeable Battery, AC 110V-240V	Recommended Application:	Heavy Duty Production, Logistics And Data Management
Data Output:	RS232 Standard, RS485 Optional
Highlight:	Portable 2000kg RS232 Floor Scale , 1500x1500mm Large 304 Platform , IP68 Washdown Data Weighing

The SMARTWEIGH SW-P504D is a 2000kg portable floor scale made completely of SUS304 stainless steel, combining a large 1500 x 1500mm platform with RS232 data output. Designed for heavy duty production and logistics weighing, this IP68 washdown scale connects to printers and PCs for traceability and quality reporting.

Key Features

RS232 data output with optional RS485 for PC, printer and PLC connection
2000kg capacity on a large 1500 x 1500mm SUS304 platform
Complete SUS304 stainless steel construction with IP68 washdown protection
High accuracy weighing with 500g division for heavy production loads
Data accumulation and statistics functions for batch records
Rechargeable battery and AC power for continuous production use

Multi Model Options (Multiple Specifications Selectable)

Model	Capacity	Platform Size	Division	Recommended For
SW-P504A	500kg	800 x 800mm	100g	Pharmaceutical
SW-P504B	1000kg	1000 x 1000mm	200g	Chemical
SW-P504C	1500kg	1200 x 1200mm	500g	Electronics
SW-P504D	2000kg	1500 x 1500mm	500g	Data management

Capacities from 500kg to 2000kg and platform sizes from 800 x 800mm to 1500 x 1500mm can be freely combined according to your weighing application. Custom platform dimensions are also available on request.

Applications

Built for heavy duty production lines, logistics centers and warehouses requiring weighing data management, quality control sampling and batch traceability.

Quality and Service

SMARTWEIGH is ISO 9001 and CE certified. Every scale is factory calibrated, load tested and IP68 verified before delivery. Inquire now for pricing and lead time.

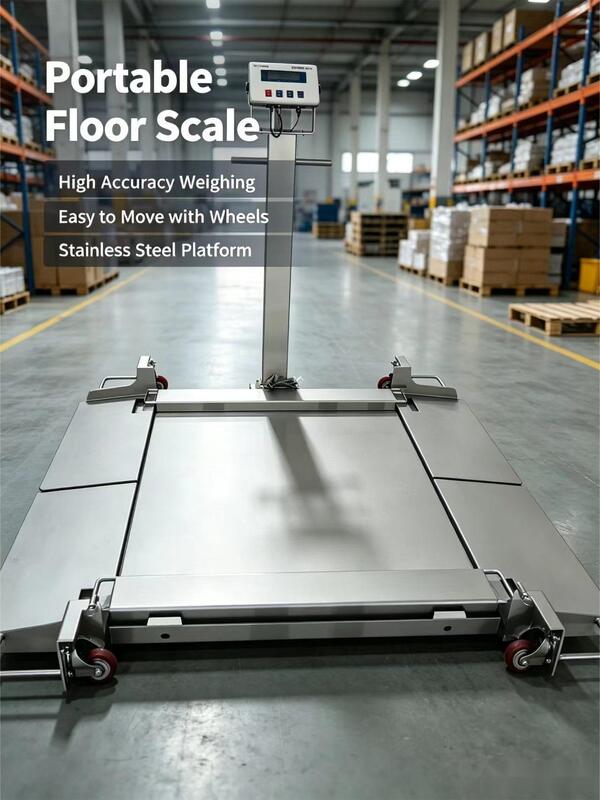

SMARTWEIGH SW-P504D portable SUS304 floor scale
