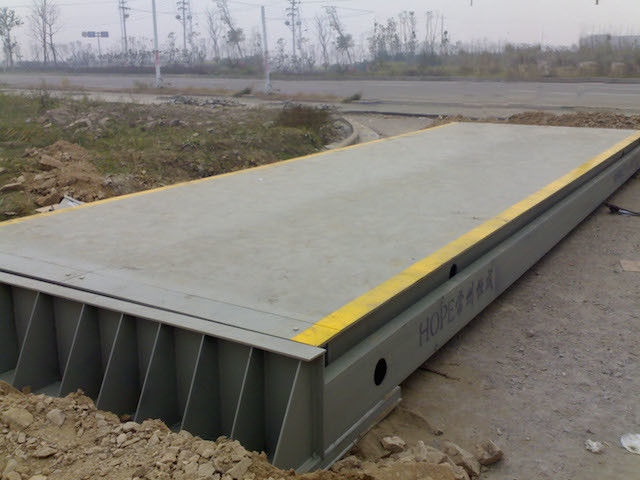

Timber Mills Portable Trailer Scales Electronic Weight Machine For Truck 3×15M

Timber Mills Portable Trailer Scales Electronic Weight Machine For Truck 3×15M

  • Timber Mills Portable Trailer Scales  Electronic Weight Machine For Truck 3×15M
  • Timber Mills Portable Trailer Scales  Electronic Weight Machine For Truck 3×15M
  • Timber Mills Portable Trailer Scales  Electronic Weight Machine For Truck 3×15M
Timber Mills Portable Trailer Scales  Electronic Weight Machine For Truck 3×15M
Product Details:
Place of Origin: CHINA
Brand Name: SMARTWEIGH
Certification: ISO/CE/SGS
Model Number: HWTS 7574
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Scales body with plastic film package, electronic parts with carton box
Delivery Time: 3-8 weeks
Payment Terms: LC,T/T, Weston Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Max Capacity: 60-150T Verification Scale Value: 10-20Kg
Weighing Platform Width: 3/3.4meter Weighing Platform Length: 6-18m (can Customized)
Civil Work Type: Portable Tempory Frame Instead Of The Civil Works CLC: 30% Maxle Axle Load Of The Total Capacity
Highlight:

vehicle weight scales

,

mining truck scales



Portable Trailer Scales Road Weighbridge Portable Wheel Scales Farm Scales Portable Weighbridge Scales



Model 7574  series portable weighbridges are designed to be easy to move from one jobsite to another. These steel-deck scales are ideal for operations such as logging, sand, gravel, construction, road building, and concrete/asphalt batching. The scale uses a bolted frame that is assembled on site. The basic portability option is a cost-effective solution to accommodate seasonal relocation of the scale. Zemic load cells combine proven performance with exceptional durability.





                                     Specification of the Portable Trailer Scales:



Model SCS-30 SCS-40 SCS-50 SCS-60 SCS-80 SCS-100 SCS-120 SCS-150
Capacity 30T 40T 50T 60T 80T 100T 120T 150T
Graduation Value 10kg 10kg 20kg 20kg 20kg 20kg 20kg 20kg
3.0×7M
3.0×9M
3.0×10M
3.0×12M
3.0×14M
3.0×15M
3.0×16M
3.0×18M
3.0×20M
3.2×12M
3.2×14M
3.2×16M
3.2×18M
3.2×20M
3.4×14M
3.4×16M
3.4×18M
3.4×21M



                                                Features and Advantages of the Portable Road Weighbridge Scales:



  • Profile: 60cm
  • 30,000Kg CLC / dual tandem axle rating
  • 10mm tread plate deck precambered to eliminate ponding
  • Steel blasted to SSPC-SP6
  • Submerged arc welding
  • No welds in the highest stress areas
  • Sealed orthotropic rib chambers will not rust from inside out
  • Digital  load cells with self-diagnostic capabilities
  • NEMA 4X stainless steel junction boxes
  • Cables with stainless steel sheath
  • Top access to load cells, junction boxes, and checking
  • 5-year guarantee
  • Epoxy-painted steel resists corrosion



       Applications:

●Aggregate yards ●Timber mills ●Farmer’s markets
●Coal mines ●Ports of entry ●Grain plants
●Concrete plants ●Transfer stations

●Transportation ops



Portable Road Weighbridge Scales Manufacturing Process:

Timber Mills Portable Trailer Scales  Electronic Weight Machine For Truck 3×15M 0

· Why Choose Us?



· 1. Our company is well known and professional to supply the truck scales, floor scales, railway scales and other industrial scales.

· 2. We have shot blasting machine, shearing machine, bending machine, pre-arch machine, automatic welding machine, Baking paint room and 20 ton crane equipment.

· 3. We have as large as 25,000 square meter workshops equipped with professional manufacturing equipments, the pipeline production is highly efficient .

· 4. We have professional service and technical team help to customize your different needs

                Our warranty is 5 years for the complete set scale, whenever you have problem, we will get in touch with you timely.





 Business Trade Terms:

  1. HS code : 84238990
  2. Delivery Port: SHANGHAI , NINGBO, QINGDAO
  3. Trade terms: EXW, FOB, CNF,CIF, DAP, DDU,DDP
  4. Payment terms: T/T or L/C, 30% advanced payment for production, balanced. PAYPAL, WESTION UNION.
  5. Professional Installation: We can send technician or require local agent installation
  6. After sales service: We can help the maintenance whenever you need



Timber Mills Portable Trailer Scales  Electronic Weight Machine For Truck 3×15M 1
