Accurate Pitless 80T Pit Mounted Heavy Duty Weighbridge

Accurate Pitless 80T Pit Mounted Heavy Duty Weighbridge

  • Accurate Pitless 80T Pit Mounted Heavy Duty Weighbridge
Accurate Pitless 80T Pit Mounted Heavy Duty Weighbridge
Product Details:
Place of Origin: CHINA
Brand Name: SMARTWEIGH
Certification: ISO/CE/SGS
Model Number: HWTS 7564
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Scales body with plastic film package, electronic parts with carton box
Delivery Time: 3-8 weeks
Payment Terms: LC,T/T, Weston Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Max Capacity: 10-300T Verification Scale Value: 5-100Kg
Weighing Platform Width: 3.4( Can Customized) Weighing Platform Length: 18m (can Customized)
Civil Work Type: Shallow Foundation Max Signal Communication Distance: 150 Meter
High Light:

Pit Mounted Heavy Duty Weighbridge

,

80T Pitless Heavy Duty Weighbridge

,

18m Pit Mounted Weighbridge



Weight Machine For Trucks Industrial Truck Scales 80 Ton Weighbridge Pit Mounted Weighbridge





Model 7564 is a steel-deck scale for weighing vehicles used in mining, steel, aggregate, forestry, and other similar operations. This rugged scale is built to provide dependable performance for extreme duty applications. It is available as a 3 Meter to 6 Meter wide scale capable of handling the industry's largest construction vehicles. The orthotropic design provides reliable weighing over a long service life, while our load cells transmit an extremely powerful signal for accurate, dependable weighing.





                         Specification of Weight Machine for Trucks:



Max Capacity 10-300T
Verification Scale Value (Readability) 5-100Kg
Weighing Platform Width 3/3.4/4/4.5m( Can Customized)
Weighing Platform Length 6-24m (can Customized)
Civil Work Type Pit less/ Shallow Foundation/ Deep Foundation
Max Signal Communication Distance 150 Meter
Work Temperature Weighing Platforms And Loadcells::-30℃-+65℃
Relatively Humidity <95%
Working Power Voltage:100-240VAC. HZ:50HZ
CLC Max Axle Load 30% Of Total Capacity
Over Load 150%F.S
Deck Construction Steel, Orthotropic;Concrete and steel, I-Beam,U- shape beam
Hazardous area approval Factory Mutual, Ex
Suitable indicators D2008; K8; K5; A9P; D10Q;DS10;
Load Cell <95%
Lightning protection Lightning Technologies tested
Load cell protection class IP68, IP69k; NEMA 6p
Options Steel Climbing Ramps; Side Rails; Manholes; Multi-Axle Scale Configurations; Riser Base Plates; Side rail mounting; Portable type option
Name: Weight Machine for Trucks
Use: Indutrial Truck Scales
Container shipping Yes





     Features and Advantages of the Pit Mounted Weighbridge:

  1. The modular design of these products allow for customization to suit your exact needs.
  2. Every new weighbridge design undergoes rigorous lifecycle testing.
  3. Proven design of the bridge type U-type welded ribs help direct the pressure of a heavy load away from areas .
  4. Automatic professional welding along the seam of each rib to the deck ensure lasting strength.
  5. High performance load cells, good accuracy and reliability make clients maximum income.
  6. Stainless house of the controller, stable and reliable, different kinds of interfaces
  7. Many storage functions: Vehicle number, Tare storage, Accumulation storage and many data report output.

Standard accessories of electronic parts:

  1. Load cells
  2. Indicator
  3. Junction Box with signal cables

Optional accessories of electronic parts:

  1. Big scoreboard
  2. PC and Printer or Weight Bill
  3. Management weighing system software
  4. Camera, traffic lights, barrier gate, louder speaker.

Optional parts for the weighing platforms:

  1. Two side rails for protection of the trucks driving.
  2. Climb steel ramps for trucks easy get on and off the weighing platforms.

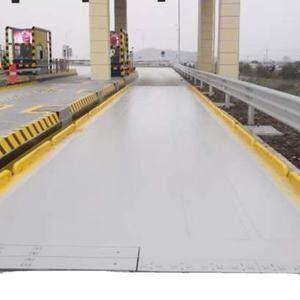

Accurate Pitless 80T Pit Mounted Heavy Duty Weighbridge 0



                                    Business Trade Terms:



HS code 84238990
Delivery Port SHANGHAI , NINGBO, QINGDAO
Trade terms EXW, FOB, CNF,CIF, DAP, DDU,DDP
Payment terms T/T or L/C, 30% advanced payment for production, balanced before shipment
Professional Installation We can send technician or require local agent installation
After sales service We can help the maintenance whenever you need
