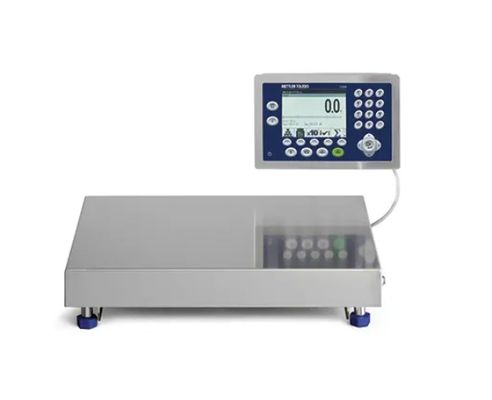

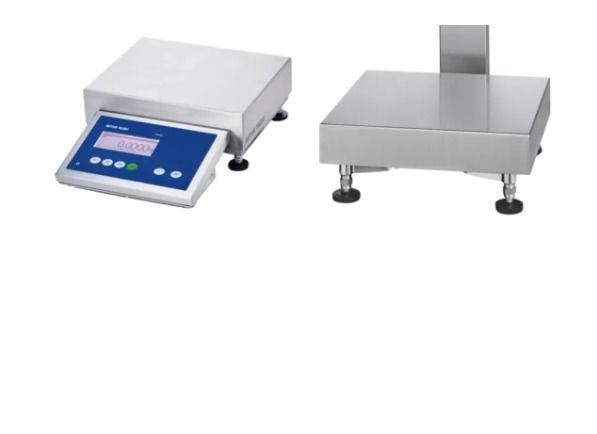

METTLER TOLEDO ICS4 / ICS6 Compact Durable Weighing Platforms for Everyday Tasks
Product Specifications
| Attribute |
Value |
| Product |
Mettler Toledo Indicator |
| Maximum Capacity |
100 lb (60 kg) |
| Readability |
0.005 lb (2 g) |
| Material |
Stainless Steel V2A (AISI 304) |
| Repeatability (sd) |
0.0018 lb (0.8 g) |
| Protection Rating |
IP68, IP69k |
| Scale Interface |
Analog |
| Platform Size (LxHxW) |
31.5 in x 5.28 in x 23.62 in (800 mm x 134 mm x 600 mm) |
| Display |
Color TFT screen |
| Readability (Certified) |
0.02 lb (10 g) |
| Interfaces(Optional) |
RS232, RS422, RS485, USB, Ethernet, Discrete I/O |
| Housing |
Stainless Steel |
| Repeatability, typical |
0.8 g |
| Hazardous Approval |
Non-Hazardous Area |
| Legal for Trade |
NTEP, OIML |
| Environment |
Wet & Harsh Wet (≥IP 66) |
| Platform Type |
Bench Scale |
| Hygienic Design |
Yes |
| Mounting Flexibility |
Table/ Wall/ Column |
| Application Software |
Counting, Dynamic Weighing, Formulation, Over Under Checkweighing, Pick & Pack, Simple Weighing |
Product Overview
Configurable, Versatile Weighing Equipment
The accurate, modular and easy-to-use ICS4 and ICS6 scales combine convenience and reliability.
The graphical LCD display with the basic colorWeight™ indicator shows operators at a glance whether results meet specifications
for high throughput with fewer errors. Available in capacities from 0.6 kg to 35 kg for compact scales or up to 600 kg with free combinations
of ICS indicators and scale platforms.
Increase Throughput with Reliable Results
Ideal for advanced weighing applications including parts counting, checkweighing, totalizing, formulation, and filling.
Features intuitive menus, user-definable function keys, a large innovative display, and customizable prompting for fast, precise operations.
Speed Up Production with colorWeight®
The smart colored display simplifies weighing applications like completeness checks, portioning, classifying, and counting while reducing errors.
The colorWeight® display instantly indicates if weight or count is below, within, or above target.
Durable Construction for Harsh Environments
Optional metal keypad features a flat face to prevent residue accumulation. Fully stainless steel construction protects against mechanical damage,
ensuring failure-free operation and easy cleaning in tough or hygienic environments.
Advanced Features
- Data+: Comprehensive data management system for materials, articles, formulas, and packing kit production with PC connectivity
- Pick&Pack: Ensures 100% kit completeness with easy-to-understand operator guidance
- SpeedWeigh™: Automatically adjusts readability based on preset requirements to increase efficiency
Frequently Asked Questions
What are the advantages of an MT compact bench scale?
Mix and match terminals and platforms to meet specific requirements. Available with WLAN technology and optional built-in
rechargeable battery for portable solutions. Resistant to wet and harsh environments for complete washdown capability.
How often should compact bench scales be calibrated?
Regular calibration by a service engineer combined with scheduled user testing according to defined SOPs maintains accuracy
and ensures performance within process tolerances.
Why buy Mettler Toledo compact bench scales?
Versatile solutions tailored to specific needs for checkweighing, counting or quality assurance. Features include ergonomic design
and colorWeight® smart display for instant visual feedback.
What power supply is needed to operate a compact bench scale?
ICS6 and ICS4 scales offer optional built-in rechargeable batteries with state-of-the-art technology for many hours of continuous operation.
