SLB515 Threaded Beam Load Cell with Threaded Mounting for Industrial Weighing Application
1.Key Features
• Threaded load-introduction holes for easy integration
• Hermetically sealed stainless-steel design
• IP68/IP69K protection for harsh environments
• Available capacity ranges: 110 kg to 4400 kg (250 lb to 10000 lb)
• OIML C3, NTEP 5000d III M accuracy certifications
• ATEX and FM hazardous area approvals
2.Product Description

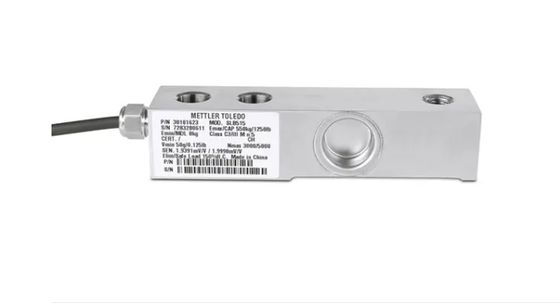

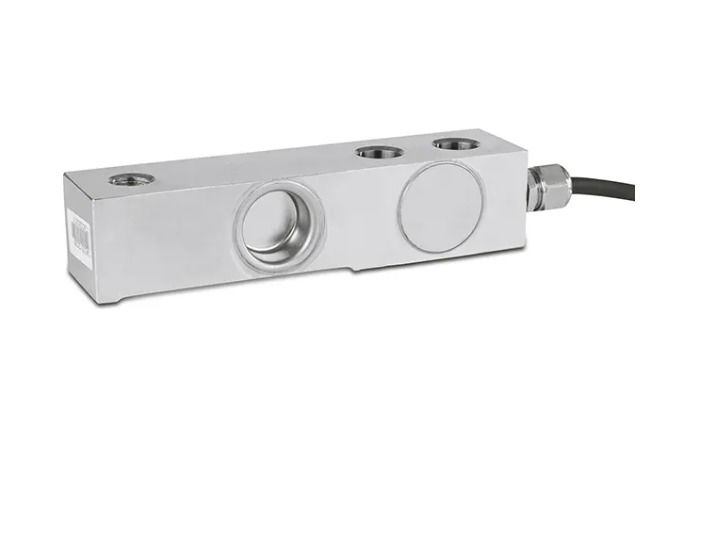

The SLB515 Threaded Beam Load Cell is a compact single-ended shear beam sensor designed for industrial weighing applications.
Its threaded mounting system provides exceptional ease of integration into new or existing weighing systems.
Single-Ended Beam Load Cells with Threaded Load-Introduction Holes
The threaded load-introduction holes make these load cells ideal for floor scales and weighing platforms where a threaded foot
provides easy height adjustment. This design offers optimal performance in various industrial applications.
Ingress Protection for Challenging Environments
The hermetically sealed, stainless-steel design makes SLB515 load cells perfect for harsh environments in process, food,
and pharmaceutical applications. The IP68/IP69K protection ensures resistance to moisture and dust for maximum stability
and measuring performance.
3.Accessories
Expansion and Vibration Kit (EVK): For top mounting applications to ensure optimal performance and isolation from vibrations
while permitting thermal expansion and contraction.
Foot Kit (FKT): Provides convenience in floor scale applications where height adjustment is important.
4.Frequently Asked Questions
What are the capacity ranges for SLB515 load cells with threaded load-introduction holes?
SLB515 load cells are available with capacities ranging from 110 kg to 4400 kg (250 lb to 10000 lb).
What approvals do SLB515 load cells carry?
Accuracy: OIML C3, NTEP 5000d III M [220 kg to 2200 kg (500 lb to 5000 lb)]
Hazardous Approvals: ATEX, FM
Are SLB515 load cells suitable for washdown environments?
Yes, SLB515 is rated IP68/IP69k, making it ideal for washdown environments.
5. Product Specification
| Attribute |
Value |
| Product |
Mettler Toledo Load Cell |
| Connectivity |
Integrated |
| Maximum Capacity |
110 kg to 4400 kg (250 lb to 10000 lb) |
| Metrology |
OIML C3, NTEP 5000d III M [220 kg to 2200 kg (500 lb to 5000 lb)] |
| Protection Rating |
IP67 |
| Material |
Aluminum, passivated |
| Washdown Environments |
IP68/IP69k |
| Hazardous Approvals |
ATEX, FM |
