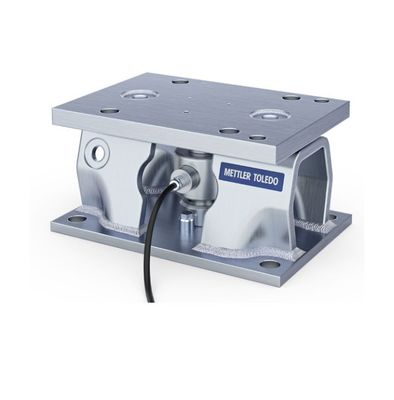

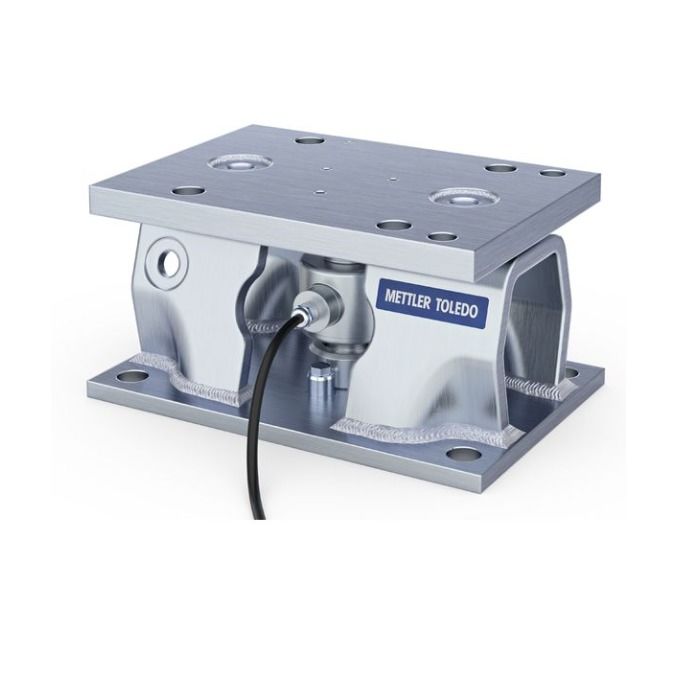

SWC515-A CS 7.5t – Compact Compression Weighing Module for Industrial Applications

The SWC515-A CS 7.5t is a high-precision compression weigh module designed for industrial applications. Its robust construction and advanced features make it ideal for demanding weighing tasks in various industrial settings.

• Multi-purpose design suitable for static & dynamic tanks, hoppers, mixers, and conveyors
• Enhanced safety with 360° self-checking, lift-off & down-stops protections
• Easy installation with SafeLock™ plates and integrated space for hydraulic jack
• Hazardous area approved with ATEX and FM certifications
• High protection rating of IP68/IP69k for demanding environments

The SWC515-A CS 7.5t compression weigh module is designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other, providing accurate measurements. This module is ideal for:

• Large platform scales (truck and railroad track scales)
• Tank, hopper, and silo weighing systems
• Industrial process weighing applications

Capacities for compression load cells within these modules range from 3 kg to 300 tons, making them suitable for a wide variety of industrial weighing requirements.
