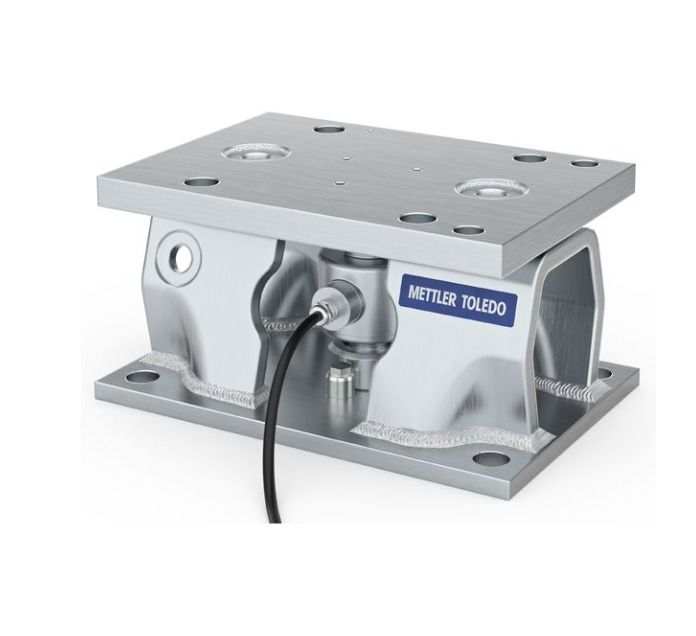

SWC515-A SS 7.5t Stainless Steel Weigh Module for Industrial Load Cells

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC515-A SS 7.5t

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	16,500 Lb (7,500 Kg)
Material:	Stainless Steel V2A (AISI 304)	Metrology:	NTEP III 5,000d OIML C3
Load Cell:	12 M Cable， SLC611	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX， FM	Criticality:	Standard
Highlight:	stainless steel weigh module , industrial load cell module , 7.5t capacity weigh module

SWC515-A SS 7.5t Stainless Steel Weigh Module for Industrial Load Cells

Product Overview

A compression weigh module designed for industrial applications where its top plate and base plate are compressed when weight is applied. This module can be directly attached to the ground, piers, or structural beams, making it ideal for large platform scales, tank weighing, hoppers, and silos. With capacity ranging from 3 kg to 300 tons, it offers versatile weighing solutions.

Key Features

Multi-Purpose Design: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors with high accuracy and full approval
Enhanced Safety: Features 360° self-checking, lift-off & down-stops protections, hazardous approvals, and IP68-rated load cells
Easy Installation: SafeLock™ plates enable fast installation without damaging the Load Cell, with integrated space for hydraulic jack

Technical Specifications

Material: Stainless Steel V2A (AISI 304)

Material No: 30730507

Max Capacity: 16,500 lb (7,500 kg)

Protection: IP68/IP69k

Environment: Wash-down / Stainless Steel

Approvals: ATEX, FM

Load Cell: 12 m cable, SLC611

Accuracy: Standard

Metrology: NTEP III 5,000d, OIML C3

Product Attributes

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	16,500 lb (7,500 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	NTEP III 5,000d OIML C3
Load Cell	12 m cable, SLC611
Accuracy	Standard
Protection Rating	IP68/69k
Environment / Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX, FM
Criticality	Standard
