Digital POWERCELL Canister Load Cells-Rugged Compression Sensors for Truck Scales

Product Details:

Place of Origin:	China
Brand Name:	Mettler Toledo
Model Number:	POWERCELL® Canister Load Cells

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Capacities Range:	7.5 T To 22.5 T (16.5 Klb To 49.5 Klb)
Accuracy:	OIML C3, NTEP 5000d III M	Hazardous Approvals:	ATEX/IECEx Zone 1 And 21; FM Division 1
Combined Error:	≤ ±0.017% Of Full Scale	Creep (20 Min):	≤ ±0.017% Of Applied Load
Minimum Verification:	500 D (e = 2 Kg / 5 Lb)	Construction:	Alloy Steel
Sealing:	Hermetically Sealed (IP68 / IP69K Rating)	Excitation Voltage:	5 To 15 VDC (Typ. 12 VDC)
Weight:	15 To 45 Lbs (7 To 20 Kg)	Corner Correction:	Digital
Highlight:	rugged digital load cells , compression load cells for truck scales , rail weighing load cell sensors

Digital POWERCELL Canister Load Cells - Rugged Compression Sensors for Truck Scales

Product Overview

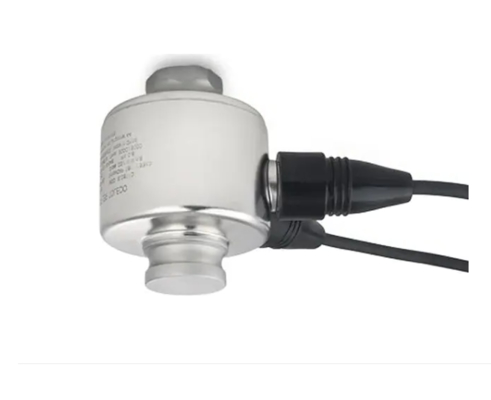

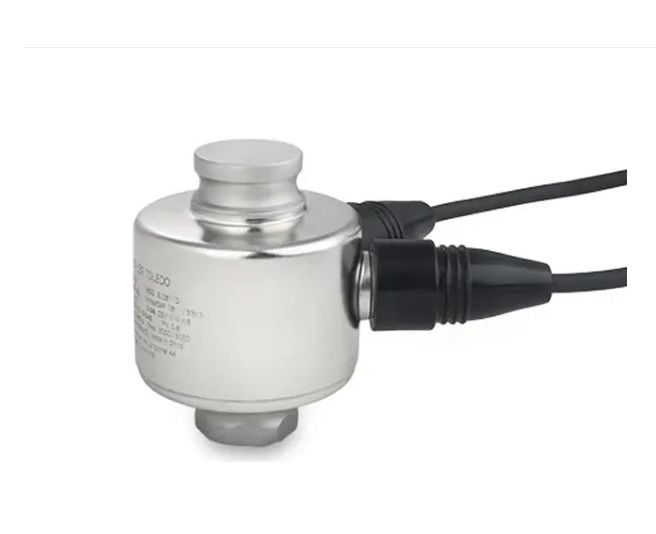

Mettler Toledo POWERCELL® load cells are rugged compression sensors designed for truck scales and rail weighing applications,

featuring high accuracy and durability for industrial environments.

Key Features

• High-accuracy canister load cells for heavy-capacity weighing (7.5 t to 22.5 t)

• Rocker-pin design for automatic load force alignment

• IP68/69K protection for challenging industrial environments

• Digital CAN Bus communication for robust signal transmission

• Smart diagnostics for immediate problem detection

• Weightless system calibration with CalFree™ Plus technology

• Hermetically sealed construction (IP68/IP69K rating)

Technical Specifications

Parameter	Specification
Capacities range	7.5 t to 22.5 t (16.5 klb to 49.5 klb)
Accuracy	OIML C3, NTEP 5000d III M
Hazardous Approvals	ATEX / IECEx Zone 1 and 21; FM Division 1
Combined Error	≤ ±0.017% of Full Scale
Creep(20 min)	≤ ±0.017% of Applied Load
Minimum Verification	500 d (e = 2 Kg / 5lb
Construction	Alloy Steel
Excitation Voltage	5 to 15 ADC (Typ. 12 VDC)
Weight	15 to 45 lbs (7 to 20 Kg)
Corner Correction	Digital
Operating Temperature	-40°F to +176°F (-40°C to +80°C)
Compensated Temperature	14°F to 122°F (-10°C to +50°C)

Frequently Asked Questions

What are the capacity ranges for POWERCELL SLC611D?

POWERCELL canister load cells are available with capacities from 7.5 t to 22.5 t (16.5 klb to 49.5 klb).

What approvals does POWERCELL SLC611D carry?

Accuracy: OIML C3, NTEP 5000d III M. Hazardous Approvals: ATEX/IECEx Zone 1 and 21; FM Division 1.
