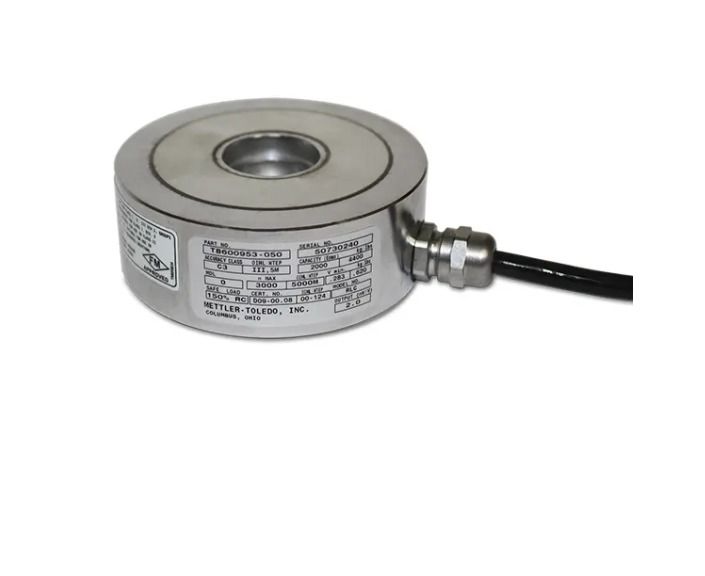

Stainless Steel Ring Torsion Load Cells - Compact and Accurate Force Sensors for Harsh Environments
1.Product Overview
RLC ring torsion load cells provide precise weight measurements in compact spaces, constructed from high-strength, heat-treated stainless steel. These low-profile compression load cells are ideal for tanks, hoppers, and industrial process weighing applications.
2.Key Features
• Available in capacities from 250 kg to 10,000 kg (550 lb to 22 klb)
• High-alloy, martensitic stainless steel construction
• Hermetically sealed with laser-welded stainless-steel covers
• IP68 protection rating for harsh environments
• No springs or moving parts for reliable operation
• Very low profile design for space-constrained installations
3.Frequently Asked Questions
What are the available capacities for the RLC ring torsion load cell?
Available capacities range from 250 kg to 10000 kg (550 lb to 22 klb).
What approvals does the RLC ring torsion load cell carry? Accuracy: OIML C3, C6, NTEP III M 5,000d
Hazardous: ATEX, FM, cFM
Installation Options For optimal safety and performance, RLC ring torsion load cells can be paired with
METTLER TOLEDO mounting hardware to create model 0970 RingMount® compression weigh module assemblies.
4.Technical Specifications
| Parameter |
Specification |
| Product |
Mettler Toledo Load Cell |
| Capacities Range |
250 Kg to 10000 Kg (550lb to 22klb) |
| Accuracy |
OIML C3, C6, NTEP III M 5,000 d |
| Hazardous Approvals |
ATEX, FM, cFM |
| Rated Output(RO) |
2.0 ± 0.1 mV/V(Typical) |
| Combined Error |
≤ ±0.02% to ±0.05% of F.S. |
| Construction Material |
High-Alloy, Martensitic Stainless Steel |
| Sealing / Protection |
IP66 / IP67/ IP 68/ IP69K |
| Recommended Excitation |
10 VDC(Typical), 5-15 VDC(Max) |
| Threads |
High-tensile Alloy Steel or Stainless Steel |
| Compensated Temp. Range |
-10°C to +40°C(14°F to 104°F) |
| Operating Temp. Range |
-30°C to +80°C(-22°F to +176°F) |
| Compliance |
OIML R60, RoHS, REACH |
