Design Function Integration Junction Boxes in Electrical Signal Systems

Product Details:

Place of Origin:	China
Brand Name:	Mettler Toledo
Model Number:	Junction Boxes

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Features:	Long-term Stability And Easy Installation Features	Product:	Mettler Toledo Load Cell
Advantages:	Discrete Resistors Provide High Accuracy And Long-term Connection	Hazardous Approvals:	ATEX, FM, CFM
Capacity Range:	SLD425/SLD525 Load Cells Is 1,000 Lb To 75,000 Lb	Material:	Rugged 316 Stainless Steel And FDA-certified Stainless Steel
Material(optional):	Polyamide (Nylon), Carbon Steel (zinc Plated), Or Stainless Steel	IP:	IP66 / IP67 (Standard)
Conduit Openings:	Multiple (e.g., 4x, 6x) With NPT Or PG Threads.	Input Channels:	4, 6, 8, 10 (Typical)
Terminals:	Screw Clamp (Standard) Or Solder Tabs.	Signal Shielding:	Dedicated Shield Terminal (Earth Ground).
Highlight:	junction boxes for electrical systems , load cell junction box integration , Mettler Toledo signal junction boxes

Design Function Integration Junction Boxes in Electrical Signal Systems

Key Features

Discrete resistors provide high accuracy and long-term connection stability
Hazardous area approvals: ATEX, FM, cFM
Capacity range: 1,000 lb to 75,000 lb (SLD425/SLD525 load cells)
Rugged 316 stainless steel and FDA-certified stainless steel construction
Optional materials: polyamide (Nylon), carbon steel (zinc plated), or stainless steel
IP66/IP67 protection rating (standard)
Multiple conduit openings with NPT or PG threads
4, 6, 8, or 10 input channels (typical)
Screw clamp (standard) or solder tab terminals
Dedicated shield terminal for earth ground

Product Overview

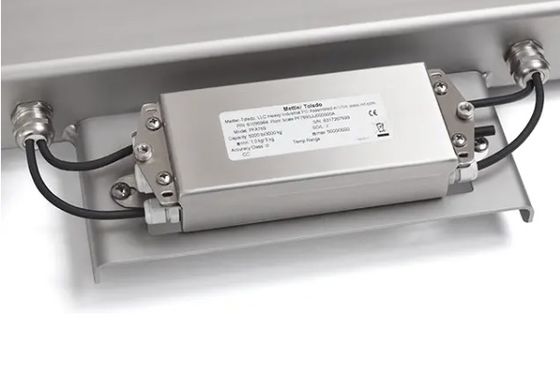

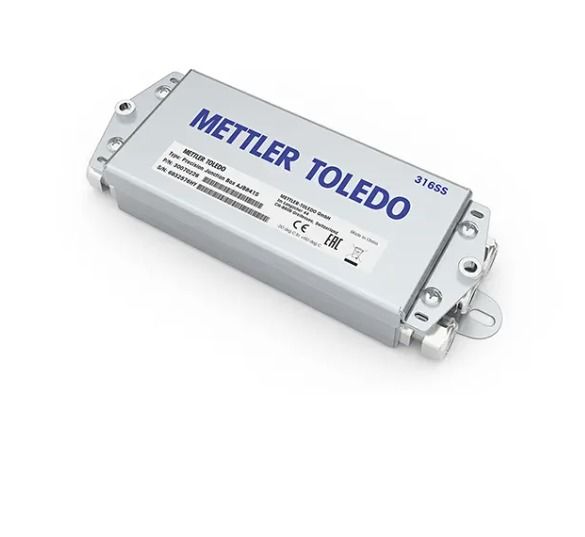

Mettler Toledo junction boxes enable quick and safe integration of multiple analog load cells into weighing systems. Our precision junction boxes are designed for hazardous areas with ATEX and IECEx certification, as well as food and pharmaceutical applications meeting EHEDG design rules with GMP and NSF certification.

Critical Performance Considerations

As an analog component where voltage changes as small as 0.1 µV can be significant, junction box design directly impacts scale accuracy. Mettler Toledo's precision junction boxes are engineered to resist temperature fluctuations, maintain long-term stability, and correct corner-load errors while reducing installation time and improving maintenance ergonomics.

Durable Construction

Our junction boxes feature IP67 or IP69K stainless-steel enclosures with high-accuracy electrical components. Available in 304 (1.4301) or 316 (1.4401) stainless steel housing materials for maximum durability.

Advanced Technology

Unlike junction boxes using trim-pots, our models employ precision discrete resistors that provide superior immunity to temperature and humidity effects. Rotary switches select arrays of precision resistors for easy corner error correction, combining the accuracy of discrete resistors with user-friendly operation.

Technical Specifications

Parameter	Specification
Material	316 stainless steel and FDA-certified stainless steel
Optional Materials	Polyamide (Nylon), carbon steel (zinc plated), or stainless steel
Capacity Range	1,000 lb to 75,000 lb (SLD425/SLD525 load cells)
Hazardous Approvals	ATEX, FM, cFM
Protection Rating	IP66 / IP67 (Standard)
Conduit Openings	Multiple (4x, 6x) with NPT or PG threads
Input Channels	4, 6, 8, 10 (Typical)
Excitation Voltage (Vex)	Matched to load cell system (Typically 5-15 VDC)
Input/Output Resistance	Matched to system impedance
Cable Length Compensation	Yes, via potentiometers for each channel

Frequently Asked Questions

What is a load cell junction box?

A load cell junction box is an enclosure designed specifically for use with load cells, which measure weight or force. It connects multiple load cells together to create an accurate weighing system.

How do load cell junction boxes affect scale performance?

Junction boxes are critical for scales using multiple analog load cells, affecting accuracy through temperature sensitivity, long-term stability, and corner-load adjustment. Mettler Toledo junction boxes provide exceptional stability and easy installation features.

How can a junction box affect scale accuracy?

Our junction boxes combine discrete resistors for high accuracy and long-term stability with rotary switches that provide simple user interfaces similar to trim pots, but without their sensitivity issues.

What materials are used in junction box construction?

Our junction boxes are made of rugged 316 stainless steel and FDA-certified stainless steel, with optional materials including polyamide (Nylon), carbon steel (zinc plated), or stainless steel to meet various budget requirements.

How does a load cell summing box work?

Load cell junction boxes (sometimes called summing boxes) connect multiple load cells to a single signal read by the indicator. Despite the name "summing box," these devices actually average the signals from multiple load cells in a weighing system.
