1. Product Overview

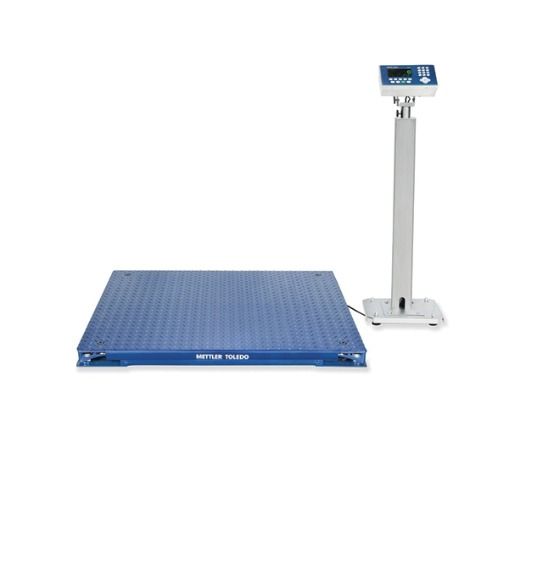

The PFD7 is a robust, low-profile floor scale engineered for high-performance industrial weighing. It is designed

to handle heavy loads and withstand the harsh conditions of industrial environments, such as warehouses, manufacturing facilities, logistics centers,

and freight yards. Its primary purpose is to provide accurate, reliable, and durable weighing for pallets, drums, machinery, and other heavy items.

2. Key Design Features & Benefits

• Rugged, All-Steel Construction: The deck and frame are typically constructed from solid, structural steel (often carbon steel with a high-quality finish)

• to ensure maximum strength and longevity under constant heavy use.

• Ultra-Low Profile Design: The scale sits very low to the ground, facilitating easy and safe loading and unloading of pallets using forklifts, pallet jacks,

• or hand trucks without the need for expensive ramps or pits.

• Fully Modular Design: The scale is often available in modular sections (e.g., 2x2 modules for an 8'x8' scale) or as a single deck. Modular designs

• simplify transportation, installation, and maintenance.

• Sealed Shear Beam Load Cells: The scale is integrated with high-capacity, hermetically sealed stainless steel shear beam load cells

• (like the PFK988-ES1500 or similar). These are rated for IP67/IP68, protecting them from dust, moisture, and physical damage from debris or spillage.

• Surface Treatments: The deck is usually covered with a non-slip, diamond-plate or checkered steel surface for safety and to minimize wear.

• The entire structure is protected by a multi-layer finish, such as an epoxy primer and a high-performance polyurethane topcoat, to resist

• corrosion, chemicals, and impact.

• Integrated Ramp Options: Many models feature bolt-on, flanged ramps that create a smooth transition from the floor to the scale deck,

• further enhancing safety and ease of use.

3. Advantages Over Alternatives

• Durability: Far more robust than portable wheel weighers or light-duty platforms.

• Safety: Low profile and non-slip surface reduce tripping hazards and make loading easier.

• Accuracy: Superior accuracy and reliability compared to hydraulic or other mechanical weighing systems.

• Total Cost of Ownership: While the initial investment may be higher, its durability and minimal maintenance requirements

• lead to a lower long-term cost.
