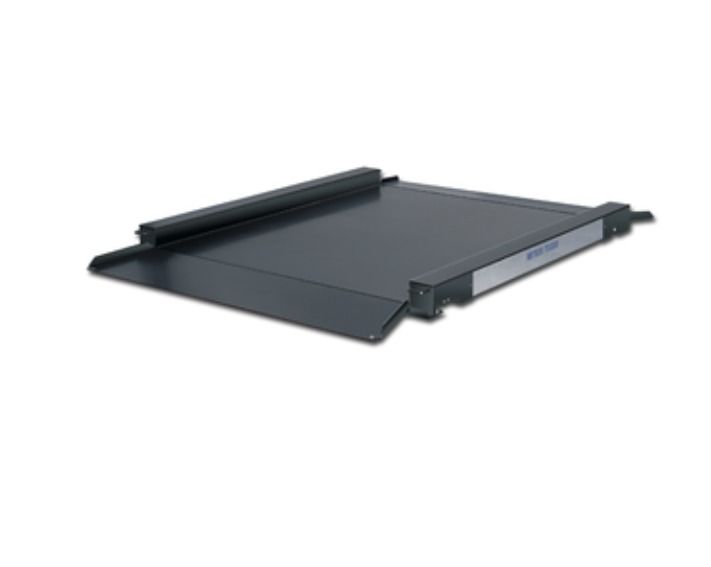

Name: PUA574 Low Profile Scale – Durable Industrial Floor Platform for Easy Loading
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Low Profile Scale PUA574
Availability: InStock

Home Products

PUA574 Low Profile Scale – Durable Industrial Floor Platform for Easy Loading

Product Details:

Place of Origin:	China
Brand Name:	Mettler Toledo
Model Number:	Low Profile Scale PUA574

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Indicator	Maximum Capacity:	500 Lb (300 Kg)
Readability:	0.05 Lb (500 G)	Readability (Certified):	0.1 Lb (1,00 G)
Platform Size (LxHxW):	24 In X 1.625 In (610 Mm X 41 Mm X 610 Mm)	Material:	Mild Steel， Mild Steel Painted
Protection Rating:	IP65	Repeatability:	0.4 Lb
Hazardous Approval:	CSA, FM Class I, Div. 1, ATEX Cat. 2GD, ATEX Cat. 3GD, FM Class I,II,III/Div 2, Other Local Approvals, IECEx	Scale Interface:	Cable Free Analog SICSpro
Repeatability, Typical:	20 G	Repeatability (sd):	0.04 Lb (20 G)
Floor Scale Type:	All Floor Scales， Mobile Floor Scales Pallet, Pallet Truck Scales	Repeatability, (typical):	0.04 Lb
Environment:	Dry (	Legal For Trade:	NTEP, OIML
Hazardous Area:	Non-hazardous Area, Zone 1/21, Zone 2/22, Division 2, Division 1	Dimensions/Platform Size:
Platform Type:	Floor Scale	Hygienic Design:	No
Highlight:	low profile industrial scale , durable floor platform scale , Mettler Toledo indicator scale

PUA574 Low Profile Scale – Durable Industrial Floor Platform for Easy Loading

Key Features

Low-profile design (35 or 45 mm height) for easy floor installation without pits
Durable mild steel construction with painted finish for dry environments
Highly flexible platform with multiple configuration options
IP65 protection rating for dusty and light wet environments
Legal for trade with NTEP certification
Multiple hazardous area approvals available

1. Low Profile - When Height Matters

The low overall height of 35 or 45 mm makes PUA574 low-profile scales ideal for floor installations with approach ramps. No costly pit installation required.

2. Environment Dictates the Material

Dry environments require a material that is well protected and easy to clean. The painted PUA574 low-profile scale is your best choice.

3. Highest Flexibility for Individual Needs

Adapt the platform with various options and accessories to ensure the PUA574 is ready to meet your production challenges.

Technical Specifications

Attribute	Value
Material Number	3040512001
Material	Mild Steel, Mild Steel painted
Maximum Capacity	500 lb (300 kg)
Readability	0.05 lb (500 g)
Readability (Certified)	0.1 lb (1,00 g)
Platform Size (LxHxW)	24 in x 1.625 in (610 mm x 41 mm x 610 mm)
Protection Rating	IP65
Platform Type	Floor scale
Environment	Dusty & Light Wet (IP65)
Legal for Trade	NTEP

Additional Specifications

Repeatability: 0.4 lb (typical 0.04 lb)
Hazardous Approvals: CSA, FM Class I, Div. 1, ATEX Cat. 2GD, ATEX Cat. 3GD, FM Class I,II,III/Div 2, other local approvals, IECEx
Scale Interface: Cable Free Analog SICSpro
Floor Scale Type: All Floor Scales, Mobile Floor Scales Pallet, Pallet Truck Scales
