Name: PFK989-E3000 Weighing Module 3000 kg Load Cell for Heavy-Duty Use
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Model PFK989-E3000
Availability: InStock

Home Products Mettler Toledo Industrial Scales

PFK989-E3000 Weighing Module 3000 kg Load Cell for Heavy-Duty Use

Product Details:

Place of Origin:	China
Brand Name:	Mettler Toledo
Model Number:	Model PFK989-E3000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Model PFK989-E3000	Maximum Capacity:	3,000 Lb (3,000 Kg)
Material:	Stainless Steel V2A (AISI 304)	Protection Rating:	IP66, IP68
Floor Scale Type:	All Floor Scales, Digital Floor Scales	Platform Type:	Floor Scale
Environment:	Wet & Harsh Wet (≥IP66)	Repeatability, (typical):	0.02205 Lb
Hazardous Area:	Division 1, Division 2, Non-hazardous Area, Zone 1/21, Zone 2/22	Legal For Trade:	NTEP, OIML
Dimensions/Platform Size:	From 1,001 To 1,500 Mm From 41" To 59.9"	Hygienic Design:	Yes
Highlight:	3000 kg load cell , heavy-duty weighing module , Mettler Toledo load cell

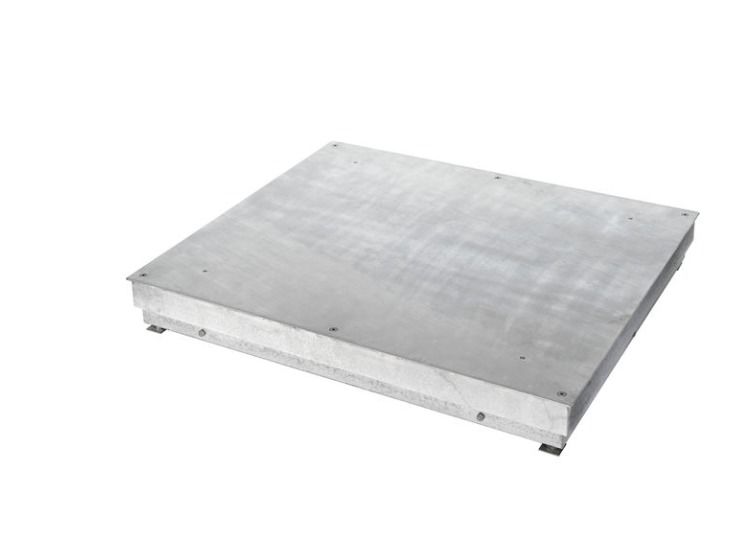

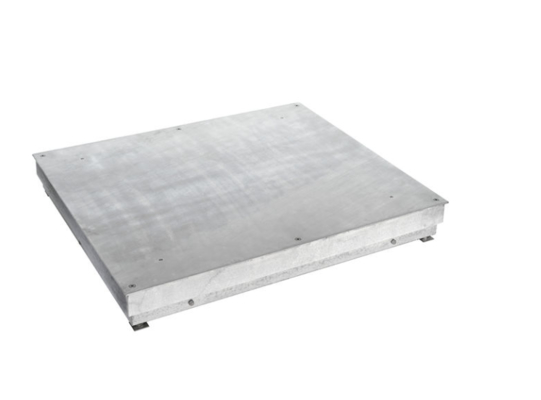

PFK989-E3000 Weighing Module - 3000 kg Load Cell for Heavy-Duty Use

1.Unprecedented Accuracy High Precision Floor Scale

High Precision Weighing: The outstanding metrology is a result of the load cell with integrated Monobloc technology and high precision mechanical design.
Reliable In Harsh Conditions: The robust design of the platform body ensures reliable measurements at the highest precision.
Fast Weighing Processes: Industry-leading stabilization time and up to 92 updates per second make the platform suitable for high-speed weighing processes.

2.Product Overview:
The PFK989-E3000 is a complete, heavy-duty, all-stainless steel shear beam load cell kit designed for high-capacity industrial weighing applications.

It is engineered to provide robust and reliable performance under extreme loads up to 3,000 kg (6,600 lbs), making it the ideal solution for building platform scales,

tank and silo weighing, hopper scales, and other demanding process control systems. Its hermetically sealed construction ensures exceptional durability in harsh,

corrosive, and wash-down environments.

3.Product Specifications

Parameter	Specificqation
Material No	22201197
Product	Model PFK989-E3000
Maximum Capacity	3,000 lb (3,000 kg)
Readability	0.01lb (5g)
Readability(Certified)	200g
Material	Stainless Steel V2A (AISI 304)
Protecting Rating	IP66, IP68
Repeatability	0.005lb
Scale Interface	SICSpro
Repeatability, typical	10g
Readability(Certified) Standard	100g, 200g, 500g
Platform Size (LxHxW)	59 in x 7.2 in x 49 in (1,500 mm x 182mm x 1,250 mm
Hazardous Approval	ATEX Cat. 2GD or Cat. 3GD, FM Class I, II, III/Div 1 or Div 2, Optional IECEX Gb/Db or Gc/Dc, other local approvals

PFK989-E3000 Weighing Module 3000 kg Load Cell for Heavy-Duty Use 0
