Name: 15t SWC615-A CS Weigh Module - Robust Carbon Steel Load Cell for Industrial Applications
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWC615-A CS 15t
Availability: InStock

Home Products

15t SWC615-A CS Weigh Module - Robust Carbon Steel Load Cell for Industrial Applications

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC615-A CS 15t

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	33,000 Lb (15,000 Kg)
Material:	Zinc Plated Steel	Metrology:	OIML C3, NTEP III 5M
Load Cell:	SLC611D	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX， FM	Criticality:	Condition Monitoring
Highlight:	carbon steel weigh module , industrial load cell , SWC615-A weigh module

15t SWC615-A CS Weigh Module - Robust Carbon Steel Load Cell for Industrial Applications

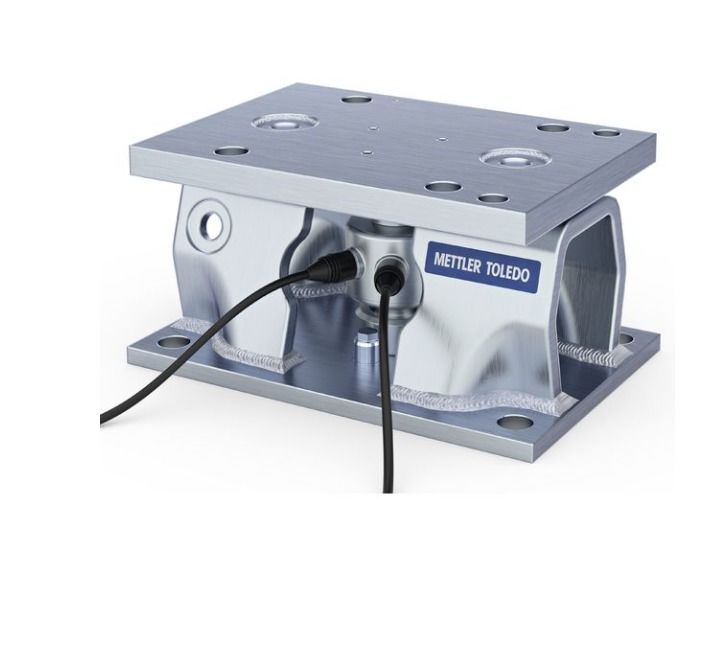

A compression weigh module designed for industrial applications where its top plate and base plate compress under load. Ideal for direct attachment to ground, piers, or structural beams. Commonly used in multiples for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing.

Key Features

Multi-Purpose Design: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors with high accuracy stainless hermetic load cell
Enhanced Safety: Features 360° self-checking, lift-off & down-stops protections with hazardous approvals and IP68 load cells
Condition Monitoring: Tracks single load cells for overload, temperature, zero drift to prevent system shutdowns or incorrect measurements

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	33,000 lb (15,000 kg)
Material	Zinc plated steel
Metrology	OIML C3, NTEP III 5M
Load Cell	SLC611D
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX, FM
Criticality	Condition monitoring
