Name: Industrial Weighing Module SWC615-A SS 50t Corrosion-Resistant Load Cell for Harsh Environments
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWC615-A SS 50t
Availability: InStock

Home Products Mettler Toledo Load Cell

Industrial Weighing Module SWC615-A SS 50t Corrosion-Resistant Load Cell for Harsh Environments

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC615-A SS 50t

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	110,000 Lb (50,000 Kg)
Material:	Stainless Steel V2A (AISI 304)	Metrology:	OIML C3, NTEP IIIL 10,000
Load Cell:	POWERCELL PDX	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX， FM	Criticality:	Condition Monitoring
Highlight:	Industrial weighing module 50t , Corrosion-resistant load cell , Stainless steel load cell

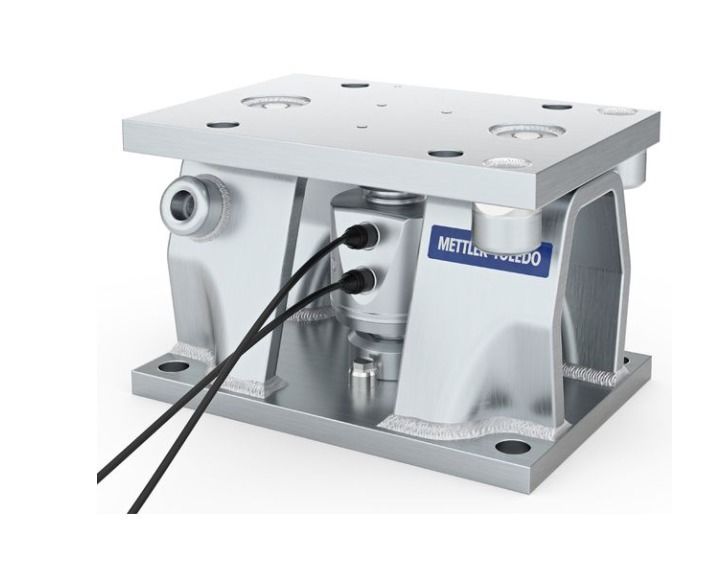

Industrial Weighing Module SWC615-A SS 50t Corrosion-Resistant Load Cell

Key Specifications

Product: Mettler Toledo Load Cell

Maximum Capacity: 110,000 lb (50,000 kg)

Material: Stainless Steel V2A (AISI 304)

Metrology: OIML C3, NTEP IIIL 10,000

Protection Rating: IP68/69k

Hazardous Approval: ATEX, FM

A high-performance compression weigh module designed for harsh industrial environments. Its stainless steel construction and robust design make it ideal for direct attachment to ground, piers, or structural beams. Commonly used in multiples for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications.

Key Features

Multi-Purpose Design: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors with high accuracy stainless hermetic load cell
Enhanced Safety: Mechanical safety features including 360° self-checking, lift-off & down-stops protections with hazardous approvals
Condition Monitoring: Monitor load cells for overload, temperature, zero drift to prevent system shutdowns or measurement errors
Corrosion-Resistant: Stainless steel V2A (AISI 304) construction withstands harsh wash-down environments
High Protection Rating: IP68/IP69k certified for durability in demanding conditions

Technical Specifications

Specification	Detail
Maximum Capacity	110,000 lb (50,000 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology Certification	OIML C3, NTEP IIIL 10,000
Load Cell Type	POWERCELL PDX
Accuracy	Standard
Protection Rating	IP68/IP69k
Hazardous Approvals	ATEX, FM
