Name: 200t Weighing Module SWC515-PM CS Industrial Compression Load Cell in Carbon Steel
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWC515 PM CS 200t
Availability: InStock

Home Products

200t Weighing Module SWC515-PM CS Industrial Compression Load Cell in Carbon Steel

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC515 PM CS 200t

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	440,000 Lb (200,000 Kg)
Material:	Carbon Steel	Metrology:	Accuracy 0.05%
Load Cell:	0782/GD	Accuracy:	Low
Protection Rating:	IP68/69k	Environment / Material:	Normal / Carbon Steel
Hazardous Approval:	ATEX， FM	Criticality:	Standard
Cable:	66 Ft (20 M)
Highlight:	200t compression load cell , carbon steel weighing module , industrial load cell with warranty

200t Weighing Module SWC515-PM CS Industrial Compression Load Cell in Carbon Steel

Product Overview

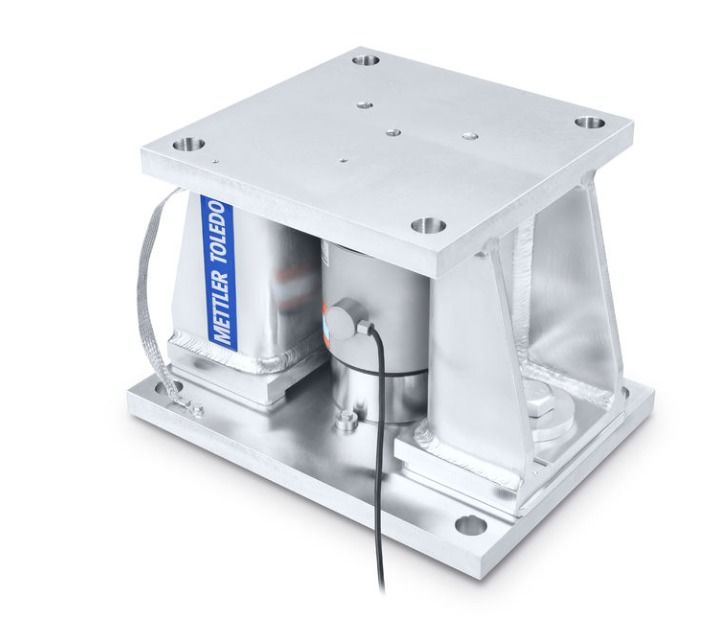

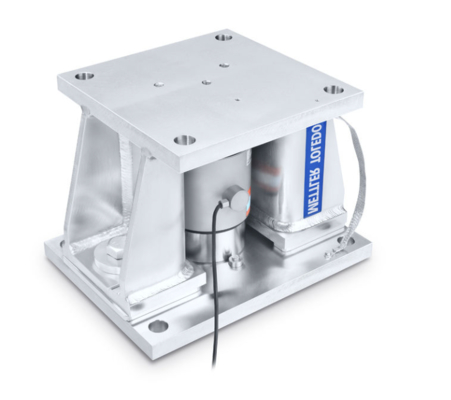

A compression weigh module designed for industrial applications where its top plate and base plate compress under load. Ideal for direct attachment to ground, piers, or structural beams. Commonly used in multiples for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems. Capacity range from 3 kg to 300 tons.

Key Features

Multi-Purpose Design: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors with high accuracy stainless hermetic load cell
Enhanced Safety: Features 360° self-checking, dual lift-off & down-stops, ground strap, hazardous approvals & IP68 stainless load cell
Easy Installation: Low profile design with alignment and rigid locking mechanism, installable with or without load cell

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	440,000 lb (200,000 kg)
Material	Carbon Steel
Metrology	Accuracy 0.05%
Load Cell	0782/GD
Accuracy	Low
Protection Rating	IP68/69k
Environment/Material	Normal/Carbon Steel
Hazardous Approval	ATEX, FM
Criticality	Standard
Cable	66 ft (20 m)
