Name: Industrial Weighing Module SWC515-A SS 30t Heavy-Duty Load Cell for Measuremen
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWC515-A SS 30t
Availability: InStock

Home Products

Industrial Weighing Module SWC515-A SS 30t Heavy-Duty Load Cell for Measuremen

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC515-A SS 30t

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	66,000 Lb (30,000 Kg)
Material:	Stainless Steel V2A (AISI 304)	Metrology:	OIML C3, NTEP IIIL 10,000
Load Cell:	0782/GD, 13 M Cable	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX， FM	Criticality:	Standard
Highlight:	Industrial weighing module 30t , Stainless steel load cell SWC515-A , Heavy-duty load cell for measurement

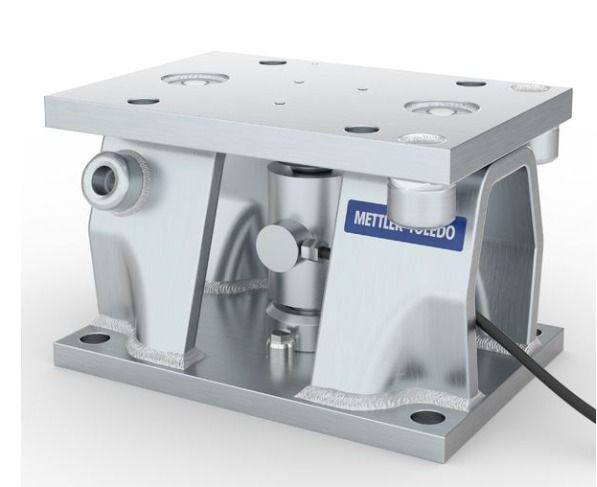

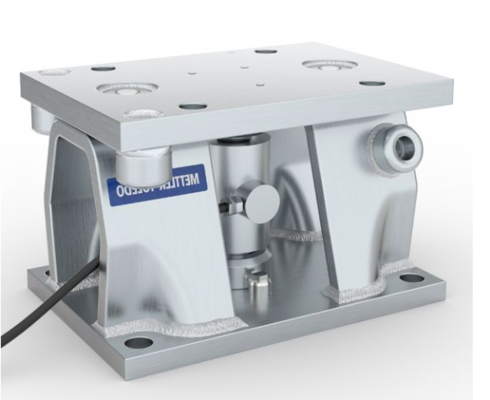

Industrial Weighing Module SWC515-A SS 30t Heavy-Duty Load Cell

Product Overview

A compression weigh module designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.

Key Features

Multi-Purpose Design

Suitable for static & dynamic tanks, hoppers, mixers & conveyors
High accuracy fully approved stainless hermetic load cell
Fits all industrial weighing applications

Enhanced Safety

Mechanical safety features including 360° self-checking
Lift-off & down-stops protections
Hazardous area approvals (ATEX, FM)
IP68 rated load cells for reliable operation

Easy Installation

Fast and straightforward setup
SafeLock™ plates prevent damage to load cell during installation
Integrated space for hydraulic jack

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	66,000 lb (30,000 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	0782/GD, 13 m cable
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM
Criticality	Standard
