Name: Industrial Weighing Module SWC515-A SS 15t Durable Stainless Steel Load Cell System
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWC515-A SS 15t
Availability: InStock

Home Products

Industrial Weighing Module SWC515-A SS 15t Durable Stainless Steel Load Cell System

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC515-A SS 15t

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	33,000 Lb (15,000 Kg)
Material:	Stainless Steel V2A (AISI 304)	Metrology:	NTEP III 5,000d OIML C3
Load Cell:	12 M Cable SLC611	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX， FM	Criticality:	Standard
Highlight:	stainless steel weighing module , 15t industrial load cell , durable SWC515-A load cell

Industrial Weighing Module SWC515-A SS 15t Durable Stainless Steel Load Cell System

Key Features:

Maximum Capacity: 33,000 lb (15,000 kg)
Stainless Steel V2A (AISI 304) construction
NTEP III 5,000d OIML C3 metrology certification
IP68/69k protection rating for wash-down environments
ATEX and FM hazardous area approvals
Includes 12 m cable SLC611 load cell

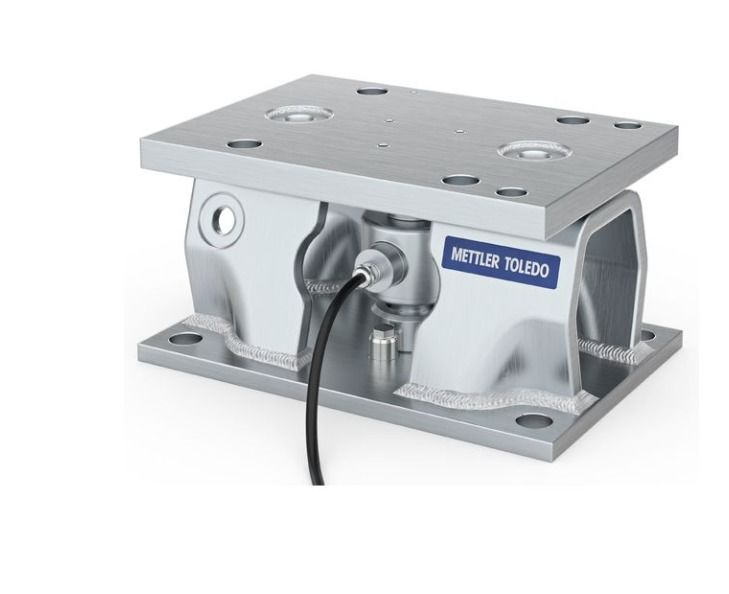

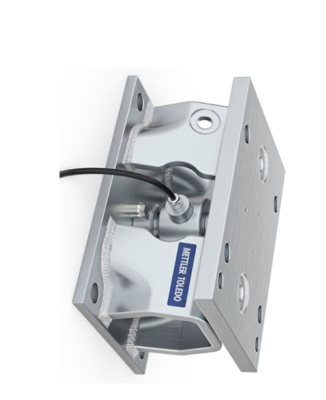

The SWC515-A SS is a compression weigh module designed for industrial applications where its top plate and base plate are compressed when weight is applied. This durable stainless steel system can be directly attached to the ground, piers, or structural beams, making it ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications.

Performance Advantages

Multi-Purpose Design

Suitable for both static and dynamic applications including tanks, hoppers, mixers, and conveyors. The high accuracy, fully approved stainless hermetic load cell ensures compatibility with all industrial weighing applications.

Enhanced Safety Features

Includes mechanical safety features such as 360° self-checking, lift-off and down-stops protections. Combined with hazardous area approvals and IP68-rated load cells, this system provides reliable operation in demanding environments.

Easy Installation

Features SafeLock™ plates for fast, straightforward installation without damaging the load cell. The integrated space for hydraulic jack simplifies setup and maintenance.

Technical Specifications

Attribute	Specification
Material	Stainless Steel V2A (AISI 304)
Maximum Capacity	33,000 lb (15,000 kg)
Protection Rating	IP68/IP69k
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM
Load Cell	12 m cable SLC611
Accuracy	Standard
Metrology	NTEP III 5,000d OIML C3
