Name: SWC515-A CS 50t Weigh Module – Heavy-Duty Load Cell for Industrial Weighing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWC515-A CS 50t
Availability: InStock

Home Products

SWC515-A CS 50t Weigh Module – Heavy-Duty Load Cell for Industrial Weighing

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC515-A CS 50t

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	110,000 Lb (50,000 Kg)
Material:	Zinc Plated Steel	Metrology:	OIML C3, NTEP IIIL 10,000
Load Cell:	0782/GD, 13 M Cable	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Normal / Carbon Steel
Hazardous Approval:	ATEX， FM	Criticality:	Standard
Highlight:	heavy-duty industrial weigh module , 50t load cell for weighing , Mettler Toledo weigh module

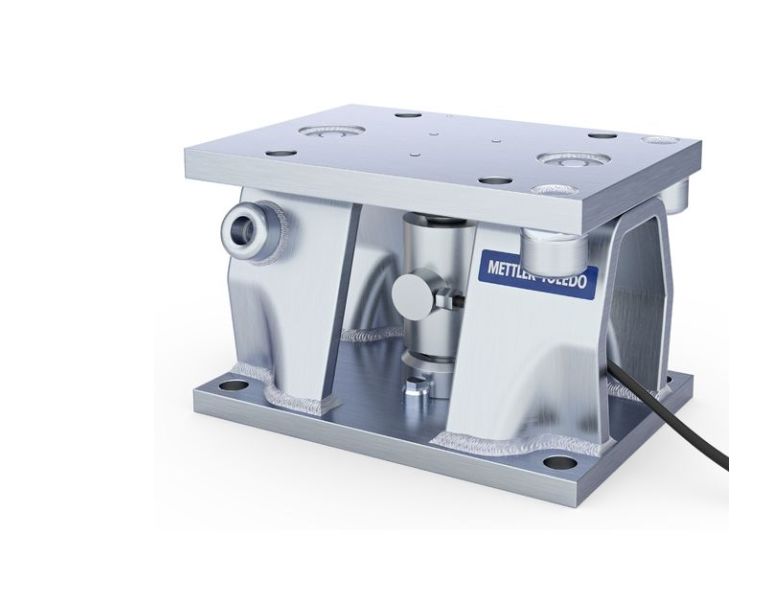

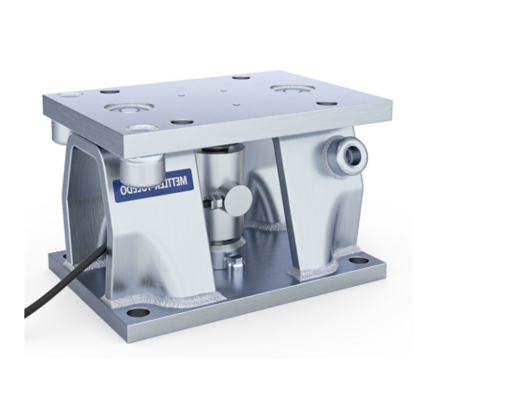

SWC515-A CS 50t Weigh Module – Heavy-Duty Load Cell for Industrial Weighing

A compression weigh module designed so that its top plate and base plate will be squeezed toward each other when weight is applied. It can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing.

Key Features

Multi-Purpose: Suitable for static & dynamic tanks, hoppers, mixers & conveyors with high accuracy fully approved stainless hermetic load cell
Enhanced Safety: Mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals & IP68 load cells
Easy Installation: Fast and straightforward installation without damaging the Load Cell, thanks to SafeLock™ plates with integrated space for hydraulic jack

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	110,000 lb (50,000 kg)
Material	Zinc plated steel
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	0782/GD, 13 m cable
Accuracy	Standard
Protection Rating	IP68/69k
Environment / Material	Normal / Carbon Steel
Hazardous Approval	ATEX, FM
Criticality	Standard

Applications

Capacities for compression load cells range from 3 kg to 300 tons, making them ideal for:

Truck and railroad track scales
Tank, hopper and silo weighing systems
Industrial platform scales
Heavy-duty process weighing applications
