Name: Stainless Steel SWC615-A Weigh Module 20t Industrial Load Cell Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWC615-A SS 20t
Availability: InStock

Home Products Mettler Toledo Load Cell

Stainless Steel SWC615-A Weigh Module 20t Industrial Load Cell Sensor

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC615-A SS 20t

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	110,000 Lb (50,000 Kg)
Material:	Stainless Steel V2A (AISI 304)	Metrology:	OIML C3, NTEP IIIL 10,000
Load Cell:	POWERCELL PDX	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX， FM	Criticality:	Condition Monitoring
Highlight:	Stainless steel weigh module 20t , Industrial load cell sensor , 20t mettler toledo load cell

Stainless Steel SWC615-A Weigh Module 20t Industrial Load Cell Sensor

Product Overview

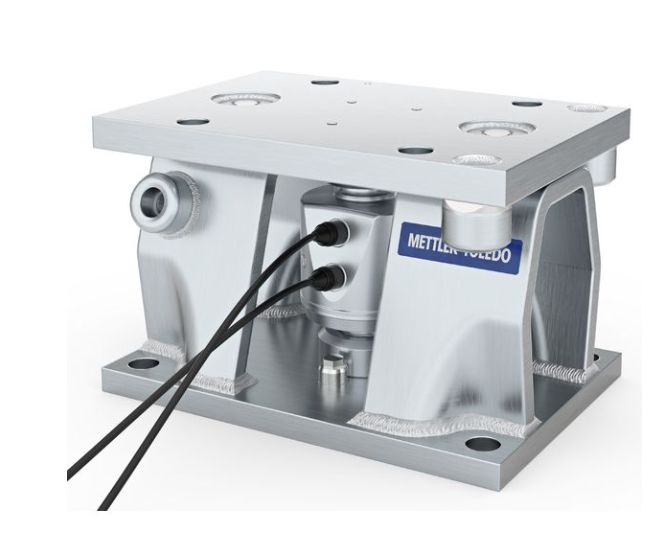

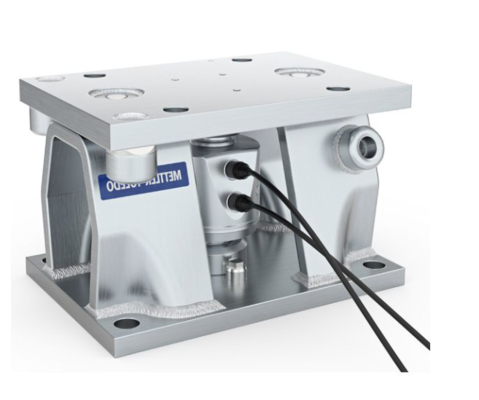

A compression weigh module designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.

Key Features

Multi-Purpose Design: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors. Features a high accuracy, fully approved stainless hermetic load cell for all applications.
Enhanced Safety: Includes mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals, and IP68 load cells for maximum reliability.
Condition Monitoring: Monitor individual load cells for overload, temperature, zero drift, and other parameters to prevent system shutdowns or measurement errors.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	110,000 lb (50,000 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	POWERCELL PDX
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM
Criticality	Condition monitoring
