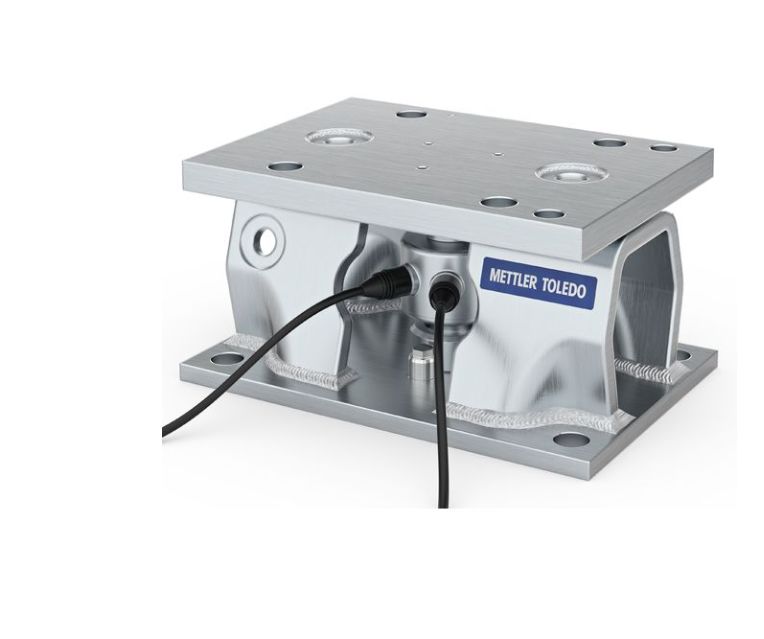

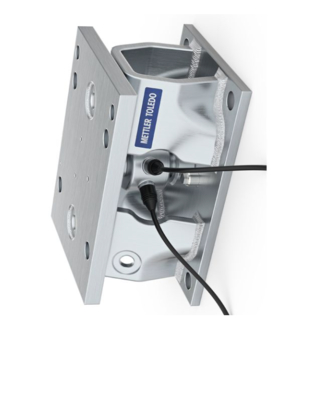

SWC615-A SS 15t Weighing Module – Carbon Steel Load Cell for Industrial Scales

SWC615-A SS 15t Weighing Module – Carbon Steel Load Cell for Industrial Scales

Product Details:
Place of Origin: CHINA
Brand Name: Mettler Toledo
Model Number: Weigh Module SWC615-A SS 15t
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Caron box
Delivery Time: 10-30days
Supply Ability: 2000 set per month
Contact Now
Detailed Product Description
Product: Mettler Toledo Load Cell Maximum Capacity: 33,000 Lb (15,000 Kg)
Material: Stainless Steel V2A (AISI 304) Metrology: OIML C3, NTEP III 5M
Load Cell: SLC611D Accuracy: Standard
Protection Rating: IP68/69k Environment / Material: Wash-down / Stainless Steel
Hazardous Approval: ATEX, FM Criticality: Condition Monitoring
Highlight:

carbon steel load cell

,

industrial weighing module

,

Mettler Toledo load cell

SWC615-A SS 15t Weighing Module – Carbon Steel Load Cell for Industrial Scales
Product Overview

A compression weigh module designed for industrial applications where its top plate and base plate are compressed under load. Ideal for direct attachment to ground, piers, or structural beams. Commonly used in multiples for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems.

Capacities range from 3 kg to 300 tons, making this 15-ton module suitable for diverse industrial weighing requirements.

Key Features
Multi-Purpose Design
  • Suitable for both static & dynamic applications including tanks, hoppers, mixers, and conveyors
  • High accuracy stainless hermetic load cell for all applications
Enhanced Safety
  • 360° self-checking mechanical safety features
  • Lift-off and down-stops protections
  • Hazardous area approvals and IP68-rated load cells
Easy Installation
  • SafeLock™ plates prevent damage during installation
  • Integrated space for hydraulic jack
  • Fast and straightforward setup process
Technical Specifications
Attribute Value
Product Mettler Toledo Load Cell
Maximum Capacity 33,000 lb (15,000 kg)
Material Stainless Steel V2A (AISI 304)
Metrology OIML C3, NTEP III 5M
Load Cell SLC611D
Accuracy Standard
Protection Rating IP68/69k
Environment/Material Wash-down / Stainless Steel
Hazardous Approval ATEX, FM
Criticality Condition monitoring
