Name: SWC515-A CS 15t Load Cell Module – Heavy-Duty Weighing Solution
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWC615-A SS 15t
Availability: InStock

Home Products

SWC515-A CS 15t Load Cell Module – Heavy-Duty Weighing Solution

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC615-A SS 15t

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	33,000 Lb (15,000 Kg)
Material:	Zinc Plated Steel	Metrology:	NTEP III 5,000d OIML C3
Load Cell:	12 M Cable SLC611	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Normal / Carbon Steel
Hazardous Approval:	ATEX， FM	Criticality:	Standard
Highlight:	15t load cell module , heavy-duty weighing load cell , Mettler Toledo load cell module

SWC515-A CS 15t Load Cell Module – Heavy-Duty Weighing Solution

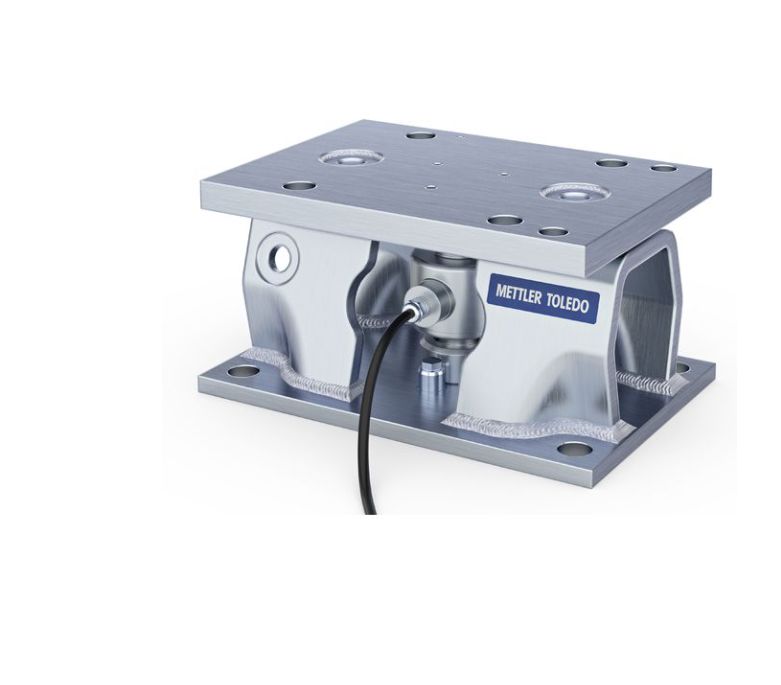

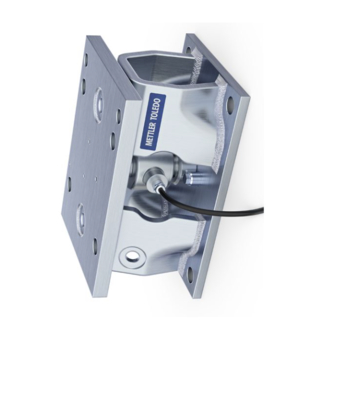

Product Overview

A robust compression weigh module designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.

Key Features

Multi-Purpose Design: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors with high accuracy stainless hermetic load cell
Enhanced Safety: Features 360° self-checking, lift-off & down-stops protections, hazardous approvals, and IP68-rated load cells
Easy Installation: SafeLock™ plates prevent damage to load cells during installation with integrated space for hydraulic jack

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	33,000 lb (15,000 kg)
Material	Zinc plated steel
Metrology	NTEP III 5,000d OIML C3
Load Cell	12 m cable SLC611
Accuracy	Standard
Protection Rating	IP68/69k
Environment / Material	Normal / Carbon Steel
Hazardous Approval	ATEX, FM
Criticality	Standard
