22.5 Ton SWC515-A SS Weigh Module – Stainless Steel Load Cell

22.5 Ton SWC515-A SS Weigh Module – Stainless Steel Load Cell

Product Details:
Place of Origin: CHINA
Brand Name: Mettler Toledo
Model Number: Weigh Module SWC515-A SS 22.5t
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Caron box
Delivery Time: 10-30days
Supply Ability: 2000 set per month
Contact Now
Detailed Product Description
Product: Mettler Toledo Load Cell Maximum Capacity: 49,500 Lb (22,500 Kg)
Material: Stainless Steel V2A (AISI 304) Metrology: NTEP III 5,000d OIML C3
Load Cell: 12 M Cable SLC611 Accuracy: Standard
Protection Rating: IP68/69k Environment / Material: Wash-down / Stainless Steel
Hazardous Approval: ATEX, FM Criticality: Standard
Highlight:

22.5 ton stainless steel weigh module

,

SWC515-A load cell with warranty

,

Mettler Toledo stainless steel load cell

22.5 Ton SWC515-A SS Weigh Module – Stainless Steel Load Cell

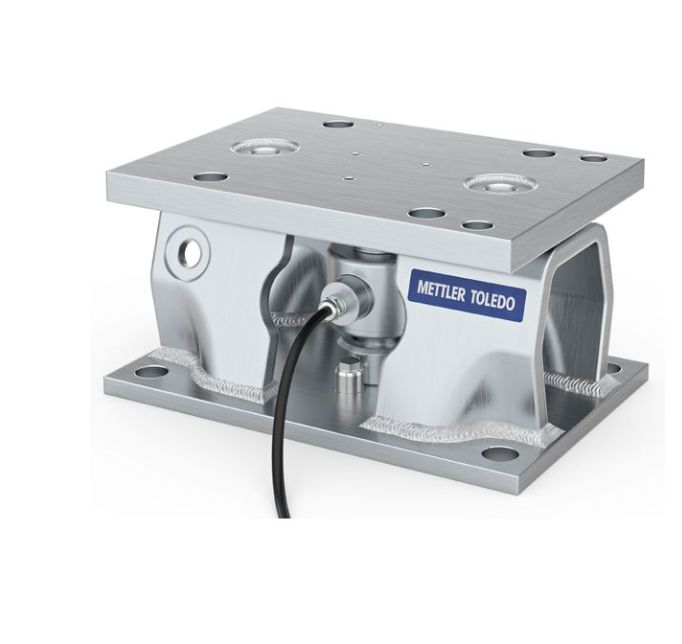

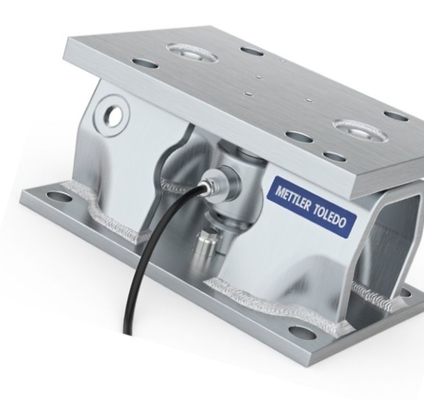

Product Overview

A compression weigh module designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.

Key Features
Multi Purpose - Always Suitable

For static & dynamic tanks, hoppers, mixers & conveyors. Features a high accuracy, fully approved stainless hermetic load cell suitable for all applications.

No Compromise on Safety

Includes mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals & IP68 load cells for maximum reliability.

Right the First Time

Fast and straightforward installation without damaging the Load Cell, thanks to the SafeLock™ plates. Integrated space for hydraulic jack included.

Technical Specifications
Product Mettler Toledo Load Cell
Maximum Capacity 49,500 lb (22,500 kg)
Material Stainless Steel V2A (AISI 304)
Metrology NTEP III 5,000d OIML C3
Load Cell 12 m cable SLC611
Accuracy Standard
Protection Rating IP68/69k
Environment / Material Wash-down / Stainless Steel
Hazardous Approval ATEX, FM
Criticality Standard
22.5 Ton SWC515-A SS Weigh Module – Stainless Steel Load Cell 0
