Name: SWC615-A SS 7.5t Weighing Module – Stainless Steel Load Cell for Weighing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWC615-A SS 7.5t
Availability: InStock

Home Products

SWC615-A SS 7.5t Weighing Module – Stainless Steel Load Cell for Weighing

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC615-A SS 7.5t

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	16,500 Lb (7,500 Kg)
Material:	Stainless Steel V2A (AISI 304)	Metrology:	OIML C3, NTEP III 5M
Load Cell:	SLC611D	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX， FM	Criticality:	Condition Monitoring
Highlight:	stainless steel weighing module , 7.5t load cell , Mettler Toledo stainless steel load cell

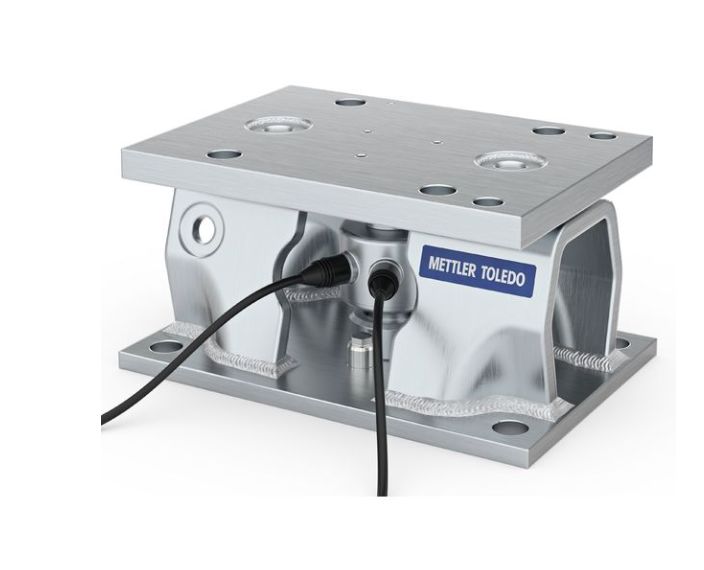

SWC615-A SS 7.5t Weighing Module – Stainless Steel Load Cell for Weighing

Premium Stainless Steel Weighing Solution

A compression weigh module designed so that its top plate and base plate compress when weight is applied. It can be attached directly to the ground, piers, or structural beams. These modules are typically used in multiples under large platform scales such as truck and railroad track scales, as well as in tank, hopper, and silo weighing applications. Capacities range from 3 kg to 300 tons.

Key Features

1. Multi-Purpose Design

Ideal for static & dynamic tanks, hoppers, mixers, and conveyors. Features a high accuracy, fully approved stainless hermetic load cell suitable for all applications.

2. Enhanced Safety Features

Includes mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals, and IP68-rated load cells for maximum reliability.

3. Condition Monitoring

Monitor individual load cells for overload, temperature, zero drift, and other parameters to enable proactive maintenance before system issues occur.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	16,500 lb (7,500 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	OIML C3, NTEP III 5M
Load Cell	SLC611D
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX, FM
Criticality	Condition monitoring
