SWC615-A CS 50t Weighing Module – Carbon Steel Load Cell for Heavy-Duty Industrial Weighing

SWC615-A CS 50t Weighing Module – Carbon Steel Load Cell for Heavy-Duty Industrial Weighing

Product Details:
Place of Origin: CHINA
Brand Name: Mettler Toledo
Model Number: Weigh Module SWC615-A CS 50t
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Caron box
Delivery Time: 10-30days
Supply Ability: 2000 set per month
Contact Now
Detailed Product Description
Product: Mettler Toledo Load Cell Maximum Capacity: 110,000 Lb (50,000 Kg)
Material: Zinc Plated Steel Metrology: OIML C3, NTEP IIIL 10,000
Load Cell: POWERCELL PDX Accuracy: Standard
Protection Rating: IP68/69k Environment / Material: Wash-down / Stainless Steel
Hazardous Approval: ATEX, FM Criticality: Condition Monitoring
Highlight:

carbon steel load cell

,

heavy-duty weighing module

,

industrial load cell with warranty

SWC615-A CS 50t Weighing Module – Carbon Steel Load Cell for Heavy-Duty Industrial Weighing
Multi-Purpose, Feature Packed Weigh Module
  • Multi Purpose - Always Suitable: For static & dynamic tanks, hoppers, mixers & conveyors. High accuracy fully approved stainless hermetic load cell fits all applications.
  • No Compromise on Safety: Mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals & IP68 load cells.
  • Condition Monitoring: Monitor single load cells for overload, temperature, zero drift etc. to enable proactive maintenance.
Product Description

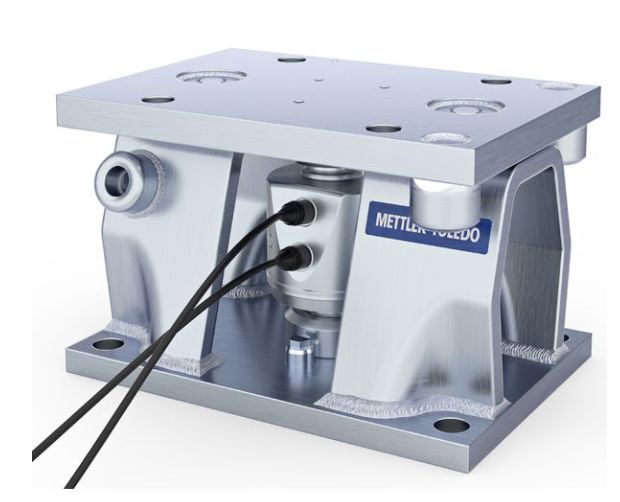

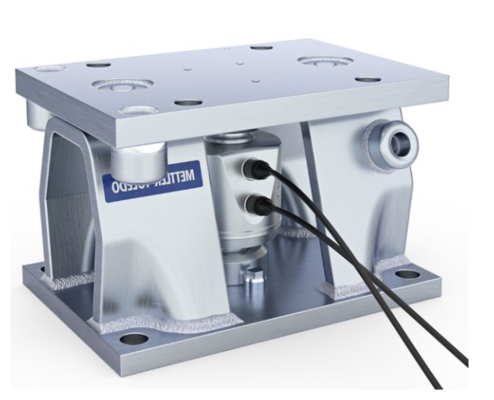

The SWC615-A CS 50t compression weigh module is designed with top and base plates that compress when weight is applied. It can be directly attached to the ground, piers, or structural beams. Ideal for use in multiples under large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications.

Technical Specifications
Attribute Value
Product Mettler Toledo Load Cell
Maximum Capacity 110,000 lb (50,000 kg)
Material Zinc plated steel
Metrology OIML C3, NTEP IIIL 10,000
Load Cell POWERCELL PDX
Accuracy Standard
Protection Rating IP68/69k
Environment / Material Wash-down / Stainless Steel
Hazardous Approval ATEX, FM
Criticality Condition monitoring
SWC615-A CS 50t Weighing Module – Carbon Steel Load Cell for Heavy-Duty Industrial Weighing 0
