SWC615-A SS 30t Load Cell Module – Corrosion Resistant Weighing Solution for Tanks

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC615-A SS 30t

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	66,000 Lb (30,000 Kg)
Material:	Stainless Steel V2A (AISI 304)	Metrology:	OIML C3, NTEP IIIL 10,000
Load Cell:	POWERCELL PDX	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX， FM	Criticality:	Condition Monitoring
Highlight:	SS 30t load cell module , corrosion resistant load cell , tank weighing load cell

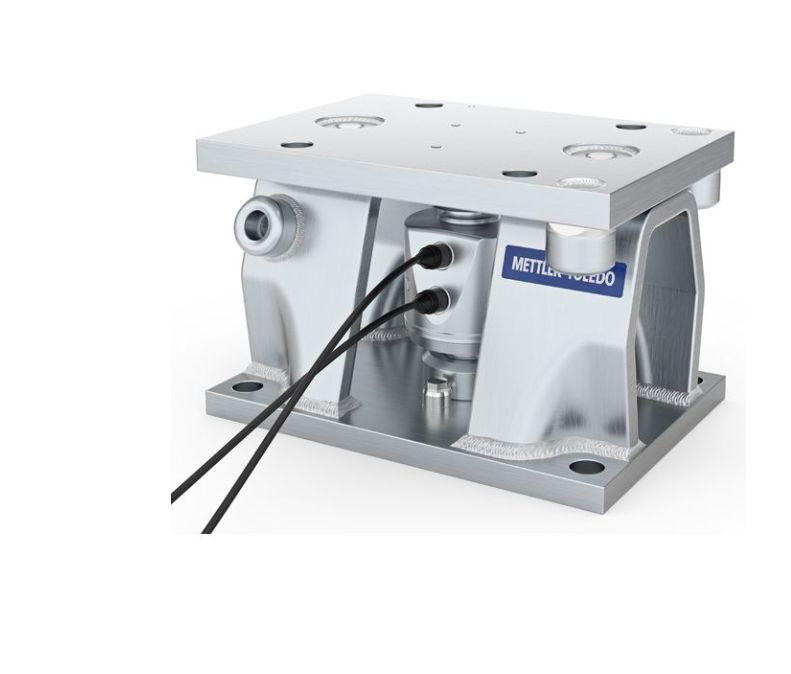

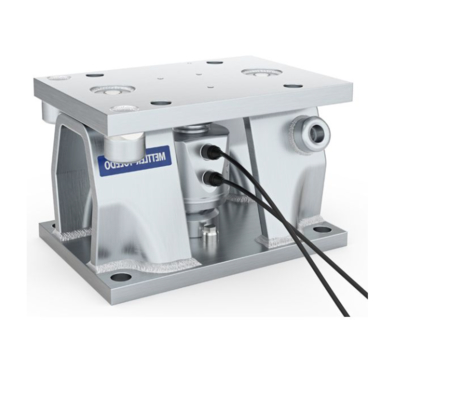

SWC615-A SS 30t Load Cell Module – Corrosion Resistant Weighing Solution for Tanks

A compression weigh module designed for direct attachment to ground, piers or structural beams. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper and silo weighing applications with capacities ranging from 3 kg to 300 tons.

Key Features

Multi-Purpose Design: Suitable for static & dynamic tanks, hoppers, mixers & conveyors with high accuracy stainless hermetic load cell

Enhanced Safety: Mechanical safety features including 360° self-checking, lift-off & down-stops protections with hazardous approvals & IP68 load cells

Condition Monitoring: Monitor single load cells for overload, temperature, zero drift to prevent system shutdowns or incorrect measurements

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	66,000 lb (30,000 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	POWERCELL PDX
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX, FM
Criticality	Condition monitoring
