Name: SWC515 PM CS 300t Weighing Module – Carbon Steel Load Cell for Ultra-Heavy Industrial Weighing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWC515 PM CS 300t
Availability: InStock

Home Products

SWC515 PM CS 300t Weighing Module – Carbon Steel Load Cell for Ultra-Heavy Industrial Weighing

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC515 PM CS 300t

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	660,000 Lb (300,000 Kg)
Material:	Carbon Steel	Metrology:	Accuracy 0.06%
Load Cell:	0782/GD	Accuracy:	Low
Protection Rating:	IP68/69k	Environment / Material:	Normal / Carbon Steel
Hazardous Approval:	ATEX， FM	Criticality:	Standard
Cable:	98 Ft (30 M)
Highlight:	carbon steel load cell , industrial weighing module , ultra-heavy load cell

SWC515 PM CS 300t Weighing Module – Carbon Steel Load Cell for Ultra-Heavy Industrial Weighing

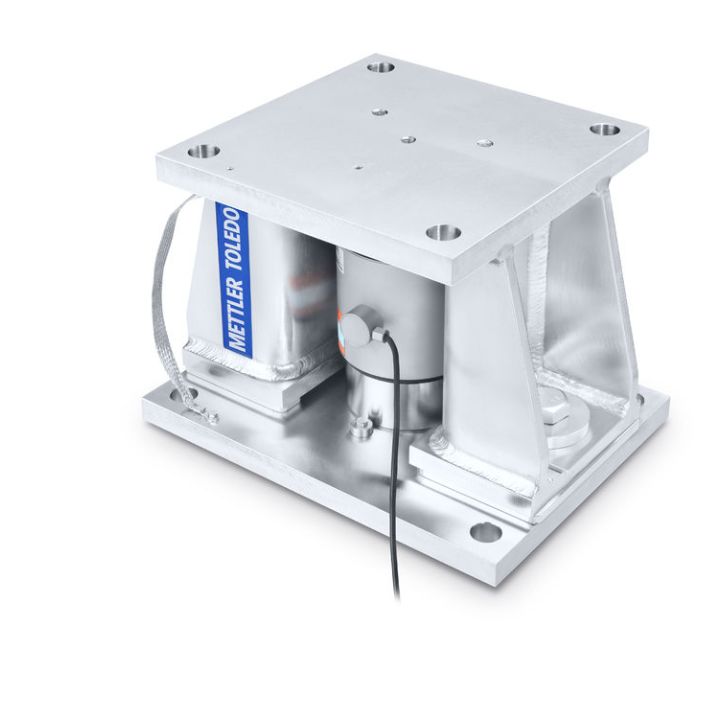

A compression weigh module designed for ultra-heavy industrial applications, featuring a carbon steel construction with a maximum capacity of 660,000 lb (300,000 kg). The module's top plate and base plate compress when weight is applied, making it ideal for direct installation on ground, piers, or structural beams.

Key Features

Multi-purpose design: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors
Enhanced safety: Features 360° self-checking, dual lift-off & down-stops, ground strap, and hazardous approvals
Easy installation: Low profile design with alignment and rigid locking, orientation-independent
Durable construction: Carbon steel material with IP68/IP69k protection rating
Certified performance: ATEX and FM hazardous area approvals

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	660,000 lb (300,000 kg)
Material	Carbon Steel
Metrology	Accuracy 0.06%
Load Cell	0782/GD
Accuracy	Low
Protection Rating	IP68/69k
Environment / Material	Normal / Carbon Steel
Hazardous Approval	ATEX, FM
Criticality	Standard
Cable	98 ft (30 m)

Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales, as well as in tank, hopper, and silo weighing applications. Capacities range from 3 kg to 300 tons.
