Name: SWB505 Stainless Steel 30kg C6 Weigh Module – Compact Load Cell for Bench Platform Scales
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: SWB505 SS 30kg C6
Availability: InStock

Home Products

SWB505 Stainless Steel 30kg C6 Weigh Module – Compact Load Cell for Bench Platform Scales

Product Details:

Place of Origin:	China
Brand Name:	Mettler Toledo
Model Number:	SWB505 SS 30kg C6

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Indicator	Maximum Capacity:	66 Lb (30 Kg)
Material:	AISI 304 Stainless Steel	Metrology:	OIML C6, NTEP IIIL 10,000
Load Cell:	MTB, 3 M Cable	Accuracy:	High
Protection Rating:	IP68， IP69k	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX， FM， CFM	Criticality:	Standard
Cable:	3 M
Highlight:	stainless steel C6 weigh module , 30kg compact load cell , bench platform scale load cell

SWB505 Stainless Steel 30kg C6 Weigh Module – Compact Load Cell for Bench Platform Scales

Economic System Integration

Multi-purpose weigh module provides the highest accuracy for both static and dynamic applications with self-aligning rocker pin for repeatability.

Key Features

Static & Dynamic Weighing: High accuracy performance for all applications
Safety & Protection: 360° checking, built-in anti-uplift/down stops, hazardous-area approvals
Easy Installation: Simple transition to weighing mode with minimal lift required for maintenance

Technical Specifications

Attribute	Value
Product	Mettler Toledo Indicator
Maximum Capacity	66 lb (30 kg)
Material	AISI 304 Stainless Steel
Metrology	OIML C6, NTEP IIIL 10,000
Load Cell	MTB, 3 m cable
Accuracy	High
Protection Rating	IP68, IP69k
Environment/Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
Cable	3 m

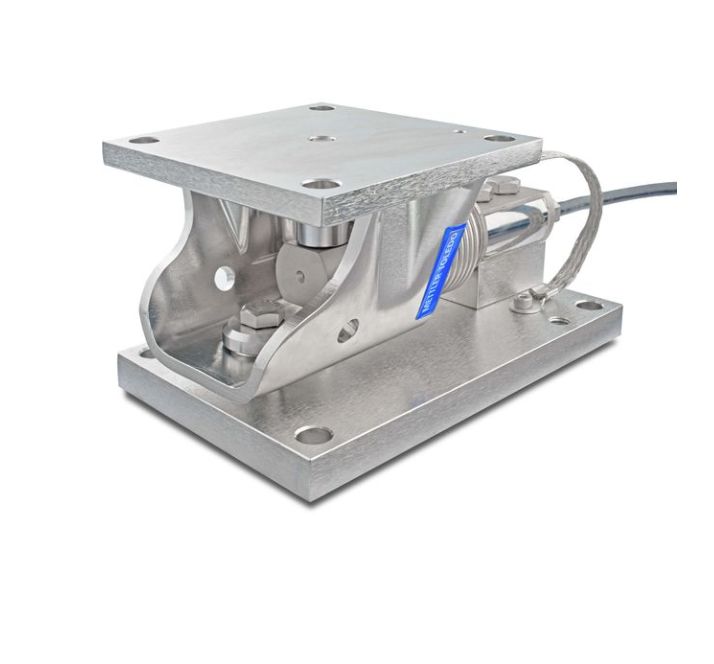

Product Image
