Name: SWB505 CS 30kg Load Cell Module Durable and Accurate C6 Weighing Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWB505 CS 30kg C6
Availability: InStock

Home Products Mettler Toledo Load Cell

SWB505 CS 30kg Load Cell Module Durable and Accurate C6 Weighing Sensor

Product Details:

Place of Origin:	China
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWB505 CS 30kg C6

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Indicator	Maximum Capacity:	66 Lb (30 Kg)
Material:	Zinc Plated Steel	Metrology:	OIML C6, NTEP IIIL 10,000
Load Cell:	MTB, 3 M Cable	Accuracy:	High
Protection Rating:	IP68， IP69k	Environment / Material:	Normal / Carbon Steel
Hazardous Approval:	ATEX， FM， CFM	Criticality:	Standard
Cable:	3 M	Material No:	30219963
Highlight:	30kg load cell module , durable C6 weighing sensor , Mettler Toledo load cell

SWB505 CS 30kg Load Cell Module Durable and Accurate C6 Weighing Sensor

Product Overview

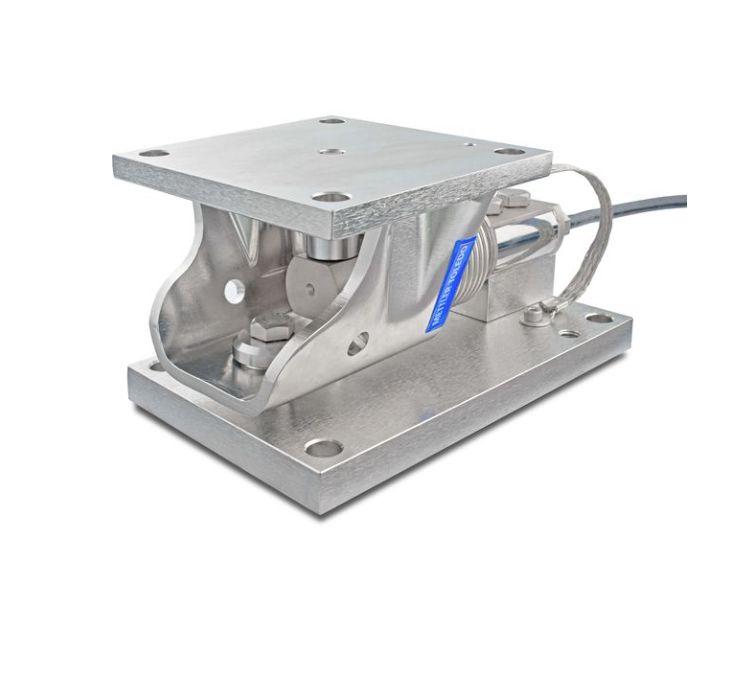

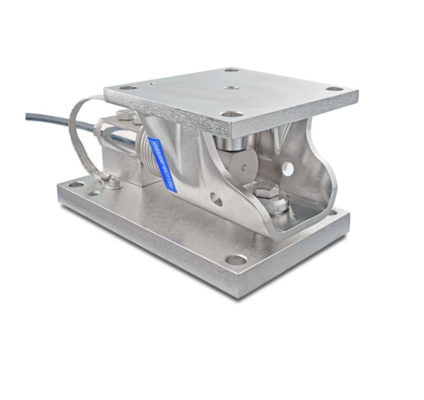

SWB505 CS 30kg Load Cell Module – Durable and Accurate C6 Weighing Sensor designed for precision weighing applications. This economic system integration solution features MultiMount Carbon Steel construction with a 30kg/66lb capacity.

Key Features

Static & Dynamic Weighing: Multi-purpose weigh module provides the highest accuracy for both static and dynamic applications
Self-aligning rocker pin ensures repeatability and consistent performance
Safety & Protection: Features include 360° checking, built-in anti-uplift and down stops, hazardous-area approvals and IP68 stainless-steel load cell
Easy Installation & Service: Product is aligned for installation & transition to weighing mode is easy. Minimal lift required to remove load cell

Technical Specifications

Attribute	Value
Product	Mettler Toledo Indicator
Maximum Capacity	66 lb (30 kg)
Material	Zinc plated steel
Metrology	OIML C6, NTEP IIIL 10,000
Load Cell	MTB, 3 m cable
Accuracy	High
Protection Rating	IP68, IP69k
Environment / Material	Normal / Carbon Steel
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
Cable	3 m
Material No	30219963

Product Identification

Material No: 30219963
