Name: 0970 Weigh Module 2T C6 NOJ – High-Accuracy Load Cell Sensor for Weighing System
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module 0970 2T C6 NOJ
Availability: InStock

Home Products

0970 Weigh Module 2T C6 NOJ – High-Accuracy Load Cell Sensor for Weighing System

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module 0970 2T C6 NOJ

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	4,400 Lb (2,000 Kg)
Material:	WM 316L, LC 17-4PH	Metrology:	NTEP IIIL 10,000 OIML C6
Load Cell:	5m (16.6ft) Cable RLC	Accuracy:	High
Protection Rating:	IP68/69k	Environment / Material:	Frequent Wash-down / Hygienic
Hazardous Approval:	ATEX， FM	Criticality:	Standard
Highlight:	2T weigh module load cell , high-accuracy load cell sensor , Mettler Toledo weighing system

0970 Weigh Module 2T C6 NOJ – High-Accuracy Load Cell Sensor for Weighing System

Product Overview

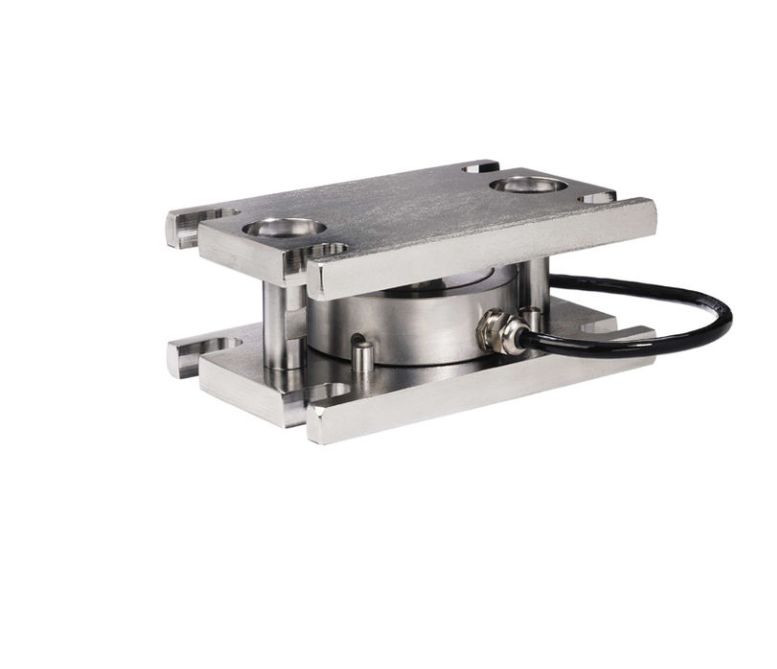

A compression weigh module designed for industrial weighing applications where its top plate and base plate compress under load. This module can be directly attached to the ground, piers, or structural beams, making it ideal for large platform scales, tank weighing, hoppers, and silos. With a capacity range from 3 kg to 300 tons, it offers versatile weighing solutions.

Key Features

Low Profile Design: 316 stainless steel construction for superior corrosion resistance
Universal Application: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors
Enhanced Safety: Features 360° self-checking, dual lift-off & down-stops
Hazardous Area Approved: ATEX and FM certifications for safe operation
Easy Installation: Lightweight design with non-critical orientation requirements

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	4,400 lb (2,000 kg)
Material	WM 316L, LC 17-4PH
Metrology	NTEP IIIL 10,000 OIML C6
Load Cell	5m (16.6ft) cable RLC
Accuracy	High
Protection Rating	IP68/69k
Environment/Material	Frequent wash-down/Hygienic
Hazardous Approval	ATEX, FM
Criticality	Standard
