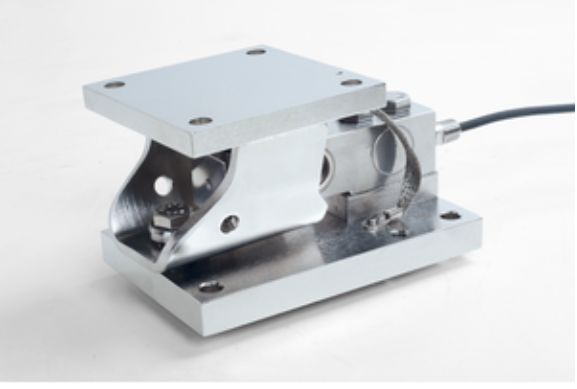

Name: SWB505 SS 550kg 1.25K C6 Weigh Module – Compact Stainless Steel Load Cell for Platform Weighing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWB505 SS 550KG1.25K C6
Availability: InStock

Home Products

SWB505 SS 550kg 1.25K C6 Weigh Module – Compact Stainless Steel Load Cell for Platform Weighing

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWB505 SS 550KG1.25K C6

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	1,250 Lb (550 Kg)
Material:	Stainless Steel V2A (AISI 304)	Metrology:	NTEP III 10,000d OIML C6
Load Cell:	0745A 5m (16.6ft) Cable	Accuracy:	High
Protection Rating:	IP68 NEMA 6/6P	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX, FM, CFM	Criticality:	Standard
Highlight:	stainless steel weigh module , 550kg platform load cell , compact C6 weigh module

SWB505 SS 550kg 1.25K C6 Weigh Module – Compact Stainless Steel Load Cell for Platform Weighing

Key Features

High accuracy compression weigh module for static and dynamic applications
Stainless Steel V2A (AISI 304) construction for durability
IP68/NEMA 6/6P protection rating for wash-down environments
Hazardous area approvals including ATEX, FM, and cFM
Self-aligning rocker pin for repeatable measurements
Easy installation and service with minimal lift required

Product Description

The SWB505 SS weigh module is a compact stainless steel load cell designed for platform weighing applications. This compression weigh module features top and base plates that compress when weight is applied, allowing direct attachment to ground, piers, or structural beams. Ideal for truck scales, railroad track scales, and tank/hopper/silo weighing systems with capacities from 3 kg to 300 tons.

Technical Specifications

Product	Mettler Toledo Load Cell
Maximum Capacity	1,250 lb (550 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	NTEP III 10,000d OIML C6
Load Cell	0745A with 5m (16.6ft) cable
Accuracy	High
Protection Rating	IP68 NEMA 6/6P
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
