Name: SWB505 SS 1.1t C6 Load Cell Module – Durable Stainless Steel Sensor for Harsh Environments
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWB505 SS 1.1T2.5K C6
Availability: InStock

Home Products

SWB505 SS 1.1t C6 Load Cell Module – Durable Stainless Steel Sensor for Harsh Environments

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWB505 SS 1.1T2.5K C6

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	2,500 Lb (1,100 Kg)
Material:	Stainless Steel V2A (AISI 304)	Metrology:	NTEP III 10,000d OIML C6
Load Cell:	0745A 5m (16.6ft) Cable	Accuracy:	High
Protection Rating:	IP68 NEMA 6/6P	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX, FM, CFM	Criticality:	Standard
Highlight:	stainless steel load cell module , C6 load cell for harsh environments , 1.1t capacity load cell sensor

SWB505 SS 1.1t C6 Load Cell Module – Durable Stainless Steel Sensor for Harsh Environments

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	2,500 lb (1,100 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	NTEP III 10,000d OIML C6
Load Cell	0745A 5m (16.6ft) cable
Accuracy	High
Protection Rating	IP68 NEMA 6/6P
Environment / Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard

Product Description

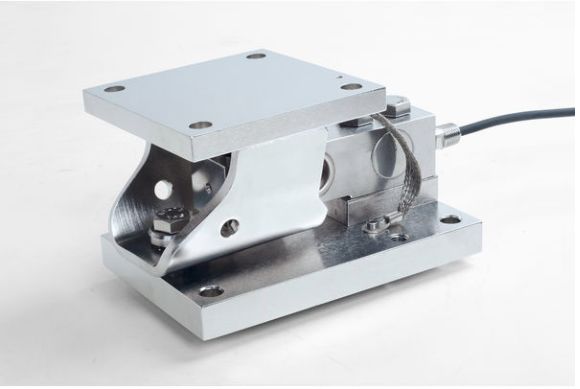

The SWB505 SS 1.1t C6 Load Cell Module is a compression weigh module designed for harsh industrial environments. When weight is applied, the top plate and base plate compress toward each other, making it ideal for direct installation on ground, piers, or structural beams.

This stainless steel sensor is commonly used in multiples under large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. With capacities ranging from 3 kg to 300 tons, it offers exceptional versatility.

Economic System Integration

Weigh Module SWB505 MultiMount Stainless Steel 1.1t/2.5k C6

Static & Dynamic Weighing

This multipurpose weigh module delivers high accuracy for both static and dynamic applications. The self-aligning rocker pin ensures consistent repeatability.

Safety & Protection

Engineered with 360° checking, built-in anti-uplift and down stops, hazardous area approvals, and an IP68-rated stainless steel load cell for maximum reliability.

Ease of Installation/Service

Pre-aligned for straightforward installation with easy transition to weighing mode. Requires minimal lift for load cell removal during maintenance.

Specifications

Material	Stainless Steel V2A (AISI 304)
Material No	30131904
Maximum Capacity	2,500 lb (1,100 kg)
Protection Rating	IP68 NEMA 6/6P
Environment / Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX, FM, cFM
Load Cell	0745A 5m (16.6ft) cable
Accuracy	High
Metrology	NTEP III 10,000d OIML C6
