SWB505 Stainless Steel 220kg (500lb) Weigh Module – C6 Precision Load Cell for Scales

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWB505 SS 220KG500LB C6

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	500 Lb (220 Kg)
Material:	Stainless Steel V2A (AISI 304)	Metrology:	NTEP III 10,000d OIML C6
Load Cell:	0745A 5m (16.6ft) Cable	Accuracy:	High
Protection Rating:	IP68 NEMA 6/6P	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX, FM, CFM	Criticality:	Standard
Highlight:	stainless steel weigh module , 500lb precision load cell , C6 load cell for scales

SWB505 Stainless Steel 220kg (500lb) Weigh Module – C6 Precision Load Cell for Scales

Key Features

High precision C6 class load cell with 220kg (500lb) capacity
Constructed from durable stainless steel V2A (AISI 304)
NTEP III 10,000d and OIML C6 metrology certifications
IP68/NEMA 6/6P protection rating for harsh environments
Approved for hazardous areas (ATEX, FM, cFM)
Includes 5m (16.6ft) cable for flexible installation

Product Description

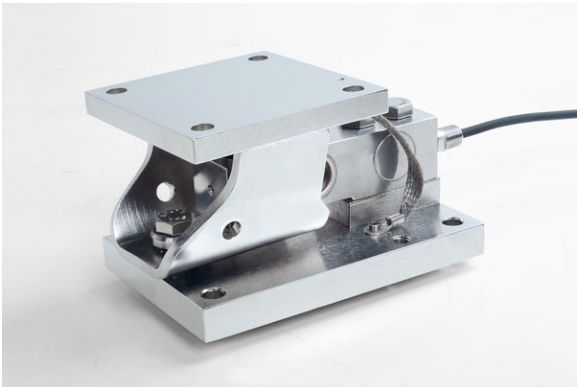

The SWB505 compression weigh module features a precision load cell designed for accurate measurement in industrial weighing applications. When weight is applied, the top plate and base plate compress toward each other, providing reliable measurements. This module can be directly mounted to ground surfaces, piers, or structural beams.

Ideal for use in multiple configurations under large platform scales including truck and railroad track scales, as well as tank, hopper and silo weighing systems. The compression load cell offers capacities ranging from 3 kg to 300 tons.

Static & Dynamic Weighing

This multipurpose weigh module delivers high accuracy for both static and dynamic applications. The self-aligning rocker pin ensures consistent repeatability of measurements.

Safety & Protection

Engineered with 360° checking, built-in anti-uplift and down stops for operational safety. Features hazardous area approvals and an IP68-rated stainless steel load cell for reliable performance in demanding environments.

Ease of Installation & Service

Pre-aligned for straightforward installation with easy transition to weighing mode. Requires minimal lift for load cell removal, simplifying maintenance procedures.

Technical Specifications

Material	Stainless Steel V2A (AISI 304)
Material No	30131902
Maximum Capacity	500 lb (220 kg)
Protection Rating	IP68 NEMA 6/6P
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM, cFM
Load Cell	0745A with 5m (16.6ft) cable
Accuracy	High
Metrology	NTEP III 10,000d, OIML C6
