SWB505 316 SS 220kg 500lb C6 Weigh Module – Load Cell for Industrial Weighing Applications

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWB505 316 220KG/500LB C6

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	500 Lb (220 Kg)
Material:	Stainless Steel V2A (AISI 304)	Metrology:	NTEP III 10,000d OIML C6
Load Cell:	0745A 5m (16.6ft) Cable	Accuracy:	High
Protection Rating:	IP68 NEMA 6/6P	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX, FM, CFM	Criticality:	Standard
Highlight:	316 stainless steel weigh module , 500lb industrial load cell , C6 weigh module with warranty

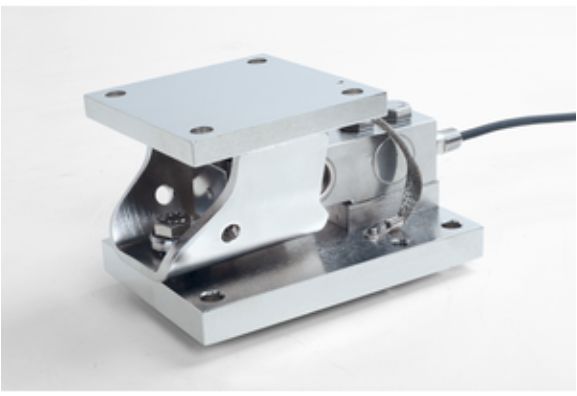

SWB505 316 SS 220kg 500lb C6 Weigh Module – Load Cell for Industrial Weighing Applications

Product Overview

A compression weigh module designed for industrial applications where its top plate and base plate compress under load. Ideal for direct attachment to ground, piers, or structural beams. Commonly used in multiples for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems.

Key Features

Static & Dynamic Weighing: Multipurpose design provides high accuracy for both static and dynamic applications with self-aligning rocker pin for repeatability.

Safety & Protection: Features 360° checking, built-in anti-uplift and down stops, hazardous area approvals, and IP68 stainless steel load cell.

Easy Installation: Designed for simple alignment and transition to weighing mode with minimal lift required for load cell removal.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	500 lb (220 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	NTEP III 10,000d OIML C6
Load Cell	0745A 5m (16.6ft) cable
Accuracy	High
Protection Rating	IP68 NEMA 6/6P
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard

Economic System Integration:

The SWB505 MultiMount Stainless Steel 316 weigh module offers exceptional value with its combination of high accuracy, durability, and ease of installation, making it ideal for demanding industrial environments.
