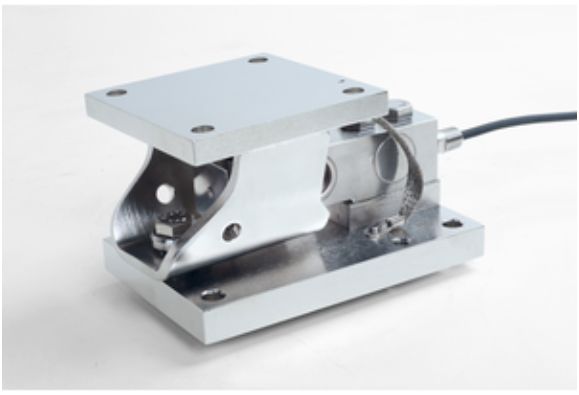

Name: 550kg 1.25k SWB505 316 Stainless Steel Load Cell Module – C6 Class for Industrial Weighing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWB505 316 550KG/1.25K C6
Availability: InStock

Home Products

550kg 1.25k SWB505 316 Stainless Steel Load Cell Module – C6 Class for Industrial Weighing

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWB505 316 550KG/1.25K C6

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	1,250 Lb (550 Kg)
Material:	Stainless Steel V4A (AISI 316)	Metrology:	NTEP III 10,000d OIML C6
Load Cell:	0745A 5m (16.6ft) Cable	Accuracy:	High
Protection Rating:	IP68 NEMA 6/6P	Environment / Material:	Frequent Wash-down / Hygienic
Hazardous Approval:	ATEX, FM, CFM	Criticality:	Standard
Highlight:	316 stainless steel load cell , 550kg industrial weighing module , C6 class load cell

550kg 1.25k SWB505 316 Stainless Steel Load Cell Module – C6 Class for Industrial Weighing

Product Overview

A high-precision compression weigh module designed for industrial weighing applications. Its stainless steel construction and robust design make it ideal for demanding environments including frequent wash-down and hygienic applications.

Key Features

Static & Dynamic Weighing: Multipurpose design provides highest accuracy for both static and dynamic applications

Safety & Protection: 360° checking, built-in anti-uplift and down stops, with hazardous area approvals

Easy Installation: Self-aligning rocker pin ensures repeatability with minimal lift required for service

Durable Construction: Stainless steel V4A (AISI 316) material with IP68/NEMA 6/6P protection rating

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	1,250 lb (550 kg)
Material	Stainless Steel V4A (AISI 316)
Metrology	NTEP III 10,000d OIML C6
Load Cell	0745A 5m (16.6ft) cable
Accuracy	High
Protection Rating	IP68 NEMA 6/6P
Environment/Material	Frequent wash-down / Hygienic
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard

Application Details

This compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied. It can be attached directly to the ground, piers or structural beams. Typically used in multiples under large platform scales such as truck and railroad track scales, and in tank, hopper and silo weighing applications.

Economic System Integration

The SWB505 MultiMount Stainless Steel 316 weigh module offers exceptional value with its combination of high accuracy, durability, and ease of installation, making it an economical choice for industrial weighing systems.
