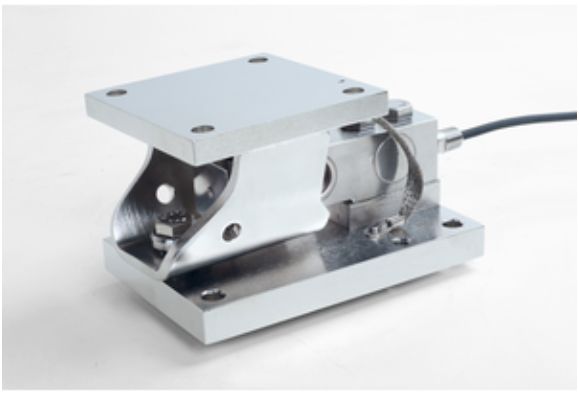

Name: SWB505 Stainless Steel Weigh Module 2.2 Ton (5,000lb) – C6 Accuracy Load Cell for Industrial Scales
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWB505 316 550KG/1.25K C6
Availability: InStock

Home Products

SWB505 Stainless Steel Weigh Module 2.2 Ton (5,000lb) – C6 Accuracy Load Cell for Industrial Scales

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWB505 316 550KG/1.25K C6

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	5,000 Lb (2,200 Kg)
Material:	Stainless Steel V2A (AISI 304)	Metrology:	NTEP III 10,000d OIML C6
Load Cell:	0745A 5m (16.6ft) Cable	Accuracy:	High
Protection Rating:	IP68 NEMA 6/6P	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX, FM, CFM	Criticality:	Standard
Highlight:	stainless steel weigh module , 2.2 ton load cell , C6 accuracy industrial scale

SWB505 Stainless Steel Weigh Module 2.2 Ton (5,000lb) – C6 Accuracy Load Cell for Industrial Scales

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	5,000 lb (2,200 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	NTEP III 10,000d OIML C6
Load Cell	0745A 5m (16.6ft) cable
Accuracy	High
Protection Rating	IP68 NEMA 6/6P
Environment / Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard

Product Description

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied to it, and it can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.

Economic System Integration

Weigh Module SWB505 MultiMount Stainless Steel 2.2t/5k C6

Static & Dynamic Weighing

Multipurpose weigh module provides the highest accuracy for both static and dynamic applications. Self-aligning rocker pin ensures repeatability.
Safety & Protection

Features include 360° checking, built-in anti-uplift and down stops, hazardous area approvals & IP68 stainless steel load cell. Peace of mind.
Ease of Installation/Service

Product is aligned for installation & transition to weighing mode is easy. Minimal lift required to remove load cell.

Specifications

Material: Stainless Steel V2A (AISI 304)

Material No: 30131905

Maximum Capacity: 5,000 lb (2,200 kg)

Protection Rating: IP68 NEMA 6/6P

Environment / Material: Wash-down / Stainless Steel

Hazardous Approval: ATEX, FM, cFM

Load Cell: 0745A 5m (16.6ft) cable

Accuracy: High

Metrology: NTEP III 10,000d OIML C6
