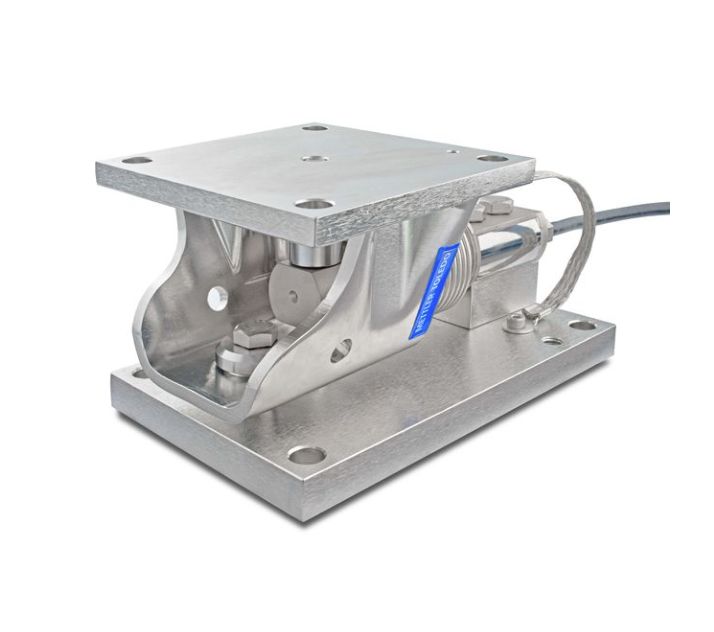

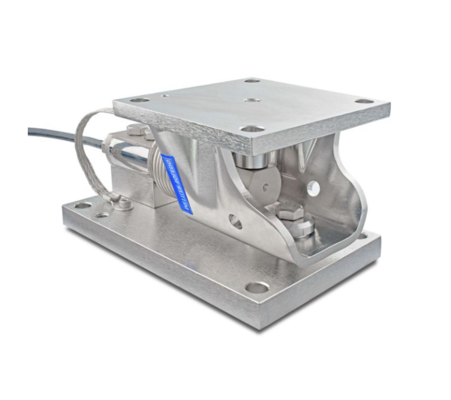

Name: SWB505 SS 2.2t / 5000lb C6 Weighing Module – Stainless Steel Load Cell
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWB505 SS 200kg C6
Availability: InStock

Home Products

SWB505 SS 2.2t / 5000lb C6 Weighing Module – Stainless Steel Load Cell

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWB505 SS 200kg C6

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	440 Lb (200 Kg)
Material:	AISI 304 Stainless Steel	Metrology:	OIML C6, NTEP IIIL 10,000
Load Cell:	MTB, 3 M Cable	Accuracy:	High
Protection Rating:	IP68, IP69k	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX, FM, CFM	Criticality:	Standard
Highlight:	stainless steel weighing module , 5000lb C6 load cell , Mettler Toledo load cell

SWB505 SS 2.2t / 5000lb C6 Weighing Module – Stainless Steel Load Cell

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	440 lb (200 kg)
Material	AISI 304 Stainless Steel
Metrology	OIML C6, NTEP IIIL 10,000
Load Cell	MTB, 3 m cable
Accuracy	High
Protection Rating	IP68, IP69k
Environment / Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied to it, and it can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.

Economic System Integration.Weigh Module SWB505 MultiMount Stainless Steel 200kg/440lb C6

Static & Dynamic Weighing

Multi-purpose weigh module provides the highest accuracy for both static and dynamic applications. Self-aligning rocker pin ensures repeatability.
Safety & Protection

Features include 360° checking, built-in anti-uplift and down stops, hazardous-area approvals and IP68 stainless-steel load cell.
Ease of Installation/Service

Product is aligned for installation & transition to weighing mode is easy. Minimal lift required to remove load cell.

Specifications

Material	AISI 304 Stainless Steel
Material No	30131971
Maximum Capacity	440 lb (200 kg)
Protection Rating	IP68 IP69k
Environment / Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX FM cFM
Load Cell	MTB, 3 m cable
Accuracy	High
Metrology	OIML C6, NTEP IIIL 10,000
