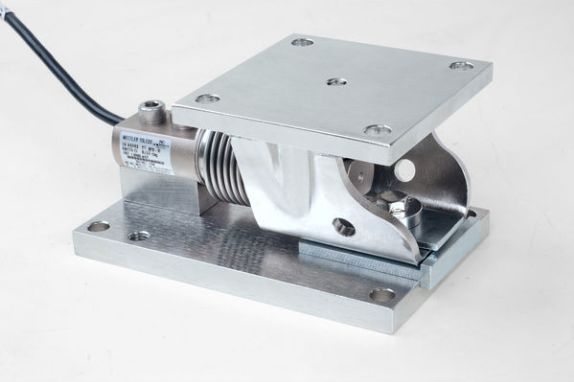

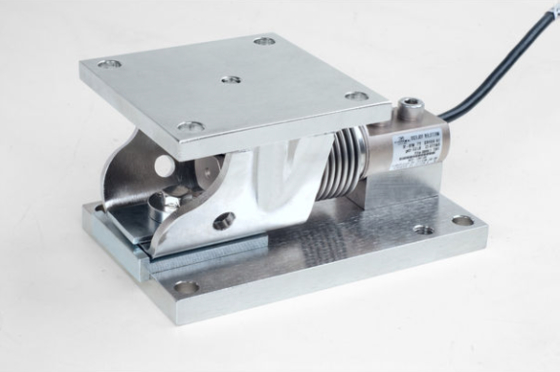

Name: SWB505 SS Load Cell Module with 10kg Precision Weighing Sensor Industrial Grade
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWB505 SS 10kg
Availability: InStock

Home Products Mettler Toledo Load Cell

SWB505 SS Load Cell Module with 10kg Precision Weighing Sensor Industrial Grade

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWB505 SS 10kg

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	22 Lb (10 Kg)
Material:	Stainless Steel V2A (AISI 304)	Metrology:	NTEP III 5M OIML C3
Load Cell:	MTB, 3 M Cable	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX, FM, CFM	Criticality:	Standard
Highlight:	10kg precision load cell , industrial grade weighing sensor , SS load cell module

SWB505 SS Load Cell Module with 10kg Precision Weighing Sensor - Industrial Grade

Product Overview

The SWB505 SS Load Cell Module is an industrial-grade precision weighing solution designed for economic system integration. This stainless steel weigh module offers 10kg/22lb capacity with exceptional accuracy for both static and dynamic applications.

Key Features

Self-aligning rocker pin ensures measurement repeatability
360° checking capability for comprehensive monitoring
Built-in anti-uplift and down stops for enhanced safety
Hazardous area approvals including ATEX, FM, and cFM
IP68 stainless steel load cell for maximum protection
Simplified installation with minimal lift requirements

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	22 lb (10 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	NTEP III 5M OIML C3
Load Cell	MTB, 3 m cable
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard

Application Details

This compression weigh module features top and base plates that compress under applied weight. Designed for direct attachment to ground, piers, or structural beams, it's ideal for use in multiples under large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications.
