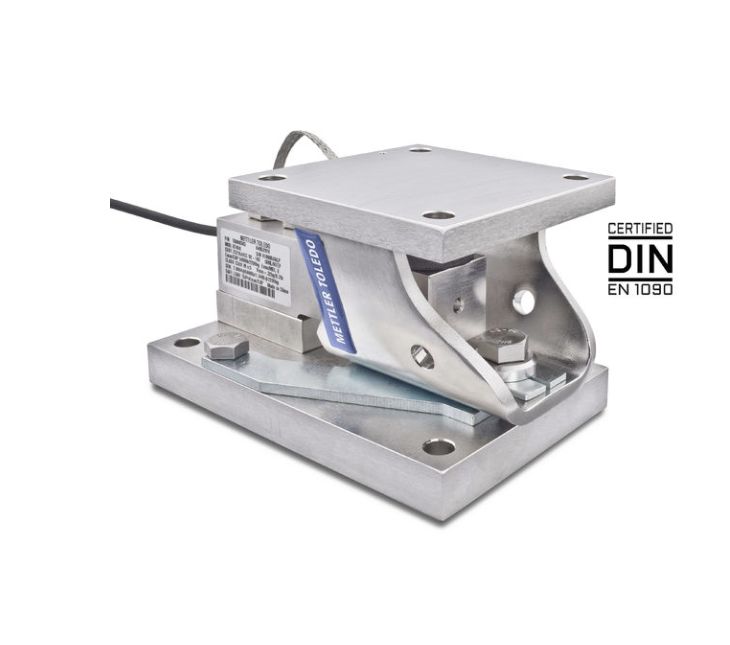

SWB505 Carbon Steel Construction Load Cell Module with 2.2 Ton EN1090 Compliant

SWB505 Carbon Steel Construction Load Cell Module with 2.2 Ton EN1090 Compliant

Product Details:
Place of Origin: CHINA
Brand Name: Mettler Toledo
Model Number: Weigh Module SWB505 MM CS 2.2t EN1090
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Caron box
Delivery Time: 10-30days
Supply Ability: 2000 set per month
Contact Now
Detailed Product Description
Product: Mettler Toledo Load Cell Maximum Capacity: 5,000 Lb (2,200 Kg)
Material: Zinc Plated Steel Metrology: NTEP III 5M, OIML C3
Cable: 5 M Accuracy: Standard
Protection Rating: IP68/69k Environment / Material: Normal / Carbon Steel
Hazardous Approval: ATEX, FM, CFM Criticality: Standard
Highlight:

carbon steel load cell module

,

2.2 ton load cell

,

EN1090 compliant load cell

SWB505 Carbon Steel Construction Load Cell Module with 2.2 Ton EN1090 Compliant
Key Features
  • Designed for compression weighing applications
  • Maximum capacity: 5,000 lb (2,200 kg)
  • Zinc plated steel construction for durability
  • IP68/69k protection rating for harsh environments
  • Hazardous area approvals: ATEX, FM, cFM
  • Metrology certifications: NTEP III 5M, OIML C3
  • Includes 5 meter cable
Product Description

The SWB505 compression weigh module is engineered with carbon steel construction for robust performance in industrial weighing applications. Its design allows the top plate and base plate to compress when weight is applied, making it ideal for direct installation on ground surfaces, piers, or structural beams.

This versatile module is commonly used in multiple configurations for large-scale weighing systems including truck scales, railroad track scales, and tank/silo weighing applications. With a capacity range suitable for various industrial needs, it provides reliable performance in both static and dynamic weighing scenarios.

Performance Advantages
  • Static & Dynamic Weighing: Delivers high accuracy for diverse applications with self-aligning rocker pin for consistent repeatability
  • Safety & Protection: Features 360° checking, built-in anti-uplift and down stops, with hazardous area approvals and IP68-rated stainless steel load cell
  • Easy Installation & Maintenance: Designed for straightforward alignment and transition to weighing mode, requiring minimal lift for load cell removal
Technical Specifications
Attribute Value
Product Mettler Toledo Load Cell
Maximum Capacity 5,000 lb (2,200 kg)
Material Zinc plated steel
Material Number 30263277
Metrology NTEP III 5M, OIML C3
Cable Length 5 m
Accuracy Standard
Protection Rating IP68/69k
Environment/Material Normal/Carbon Steel
Hazardous Approval ATEX, FM, cFM
Criticality Standard
SWB505 Carbon Steel Construction Load Cell Module with 2.2 Ton EN1090 Compliant 0
