SWB505 Carbon Steel Construction Load Cell Module with 2.2 Ton EN1090 Compliant

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWB505 MM SS316 2.2t EN1090

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	5,000 Lb (2,200 Kg)
Material:	316 Stainless Steel	Metrology:	NTEP III 5M, OIML C3
Cable:	5 M	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Frequent Wash-down / Hygienic
Hazardous Approval:	ATEX, FM, CFM	Criticality:	Standard
Highlight:	carbon steel load cell module , 2.2 ton load cell , EN1090 compliant load cell

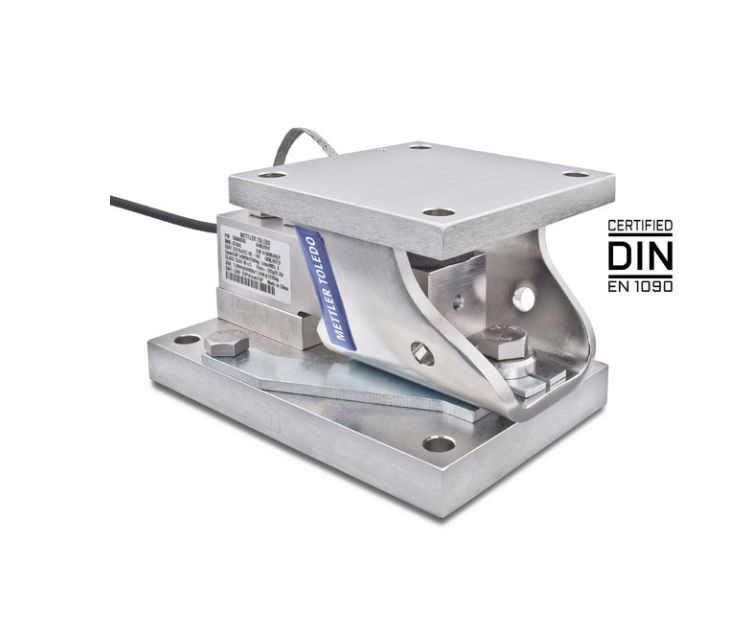

SWB505 Carbon Steel Construction Load Cell Module with 2.2 Ton EN1090 Compliant

Product Overview

The SWB505 compression weigh module features carbon steel construction with a 2.2 ton capacity, compliant with EN1090 standards. Designed for direct attachment to ground, piers, or structural beams, it's ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications.

Key Features

Designed for compression weighing applications with capacities from 3 kg to 300 tons
316 Stainless steel construction for durability and corrosion resistance
IP68/69k protection rating for frequent wash-down and hygienic environments
Hazardous area approvals including ATEX, FM, and cFM
5-meter cable for flexible installation

Performance Advantages

Static & Dynamic Weighing

Multipurpose weigh module delivers high accuracy for both static and dynamic applications. The self-aligning rocker pin ensures consistent repeatability.

Safety & Protection

Features 360° checking, built-in anti-uplift and down stops, along with hazardous area approvals and IP68-rated stainless steel load cell for reliable operation.

Ease of Installation & Service

Simplified alignment for installation with easy transition to weighing mode. Requires minimal lift for load cell removal during maintenance.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	5,000 lb (2,200 kg)
Material	316 Stainless steel
Metrology	NTEP III 5M, OIML C3
Cable	5 m
Accuracy	Standard
Protection Rating	IP68/69k
Environment / Material	Frequent wash-down / Hygienic
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
