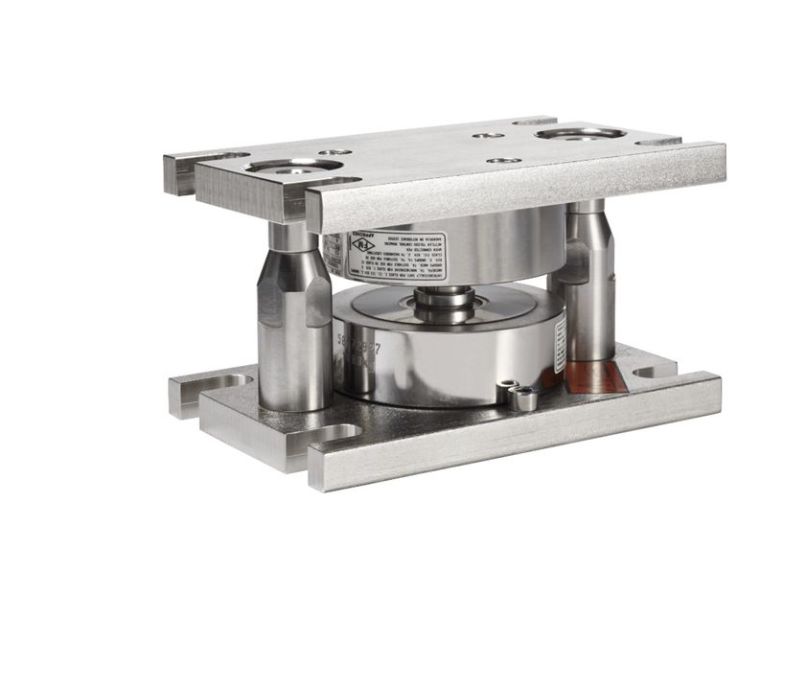

Name: 0970 C6 Certified Accuracy Weigh Module with 5T RDT Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module 0970 5T C6 RDT
Availability: InStock

Home Products

0970 C6 Certified Accuracy Weigh Module with 5T RDT Sensor

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module 0970 5T C6 RDT

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	11,230 Lb (5,000 Kg)
Material:	WM 316L, LC 17-4PH	Metrology:	NTEP IIIL 10,000 OIML C6
Load Cell:	5m (16.6ft) Cable RLC	Accuracy:	High
Protection Rating:	IP68	Environment / Material:	Frequent Wash-down / Hygienic
Hazardous Approval:	ATEX， FM	Criticality:	Standard
Highlight:	C6 certified weigh module , 5T RDT load cell , Mettler Toledo weigh module

0970 C6 Certified Accuracy Weigh Module with 5T RDT Sensor

Product Attributes

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	11,230 lb (5,000 kg)
Material	WM 316L, LC 17-4PH
Metrology	NTEP IIIL 10,000 OIML C6
Load Cell	5m (16.6ft) cable RLC
Accuracy	High
Protection Rating	IP68
Environment / Material	Frequent wash-down / Hygienic
Hazardous Approval	ATEX, FM
Criticality	Standard

Product Description

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied to it, and it can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.

Low Profile, 316 SS for Corrosion Resistance

Always Suitable

For static & dynamic tanks, hoppers, mixers & conveyors. With the high accuracy fully approved stainless hermetic load cell it fits all applications.
Safety & Protection

Features include 360° self-checking, dual lift-off & down-stops, hazardous approvals & IP68 stainless load cell. Peace of mind.
Ease of Installation

Product is light, low profile & aligned & rigidly locked for installation, with or without the load cell installed. Orientation is not critical.

Specifications

Material	WM 316L, LC 17-4PH
Material No	61046858
Maximum Capacity	11,230 lb (5,000 kg)
Protection Rating	IP68
Environment / Material	Frequent wash-down / Hygienic
Hazardous Approval	ATEX FM
Load Cell	5m (16.6ft) cable RLC
Accuracy	High
Metrology	NTEP IIIL 10,000 OIML C6
