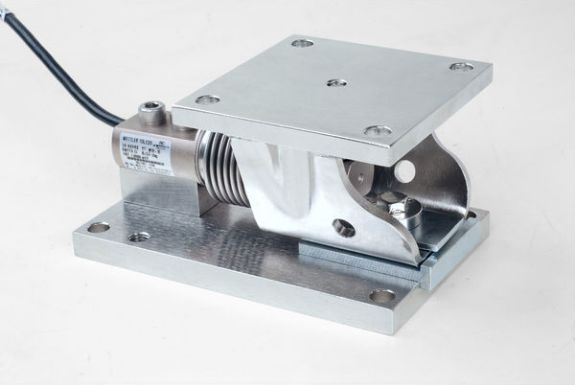

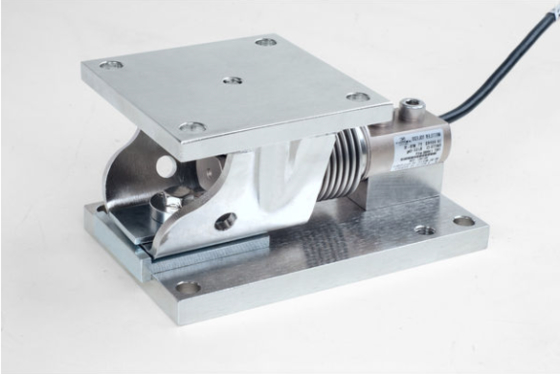

Name: 100kg SWB505 Carbon Steel Construction Load Cell Module with High Accuracy Weighing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWB505 CS 100kg
Availability: InStock

Home Products Mettler Toledo Load Cell

100kg SWB505 Carbon Steel Construction Load Cell Module with High Accuracy Weighing

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWB505 CS 100kg

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	220 Lb (100 Kg)
Material:	Zinc Plated Steel	Metrology:	NTEP III 5M OIML C3
Load Cell:	MTB, 3 M Cable	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Normal / Carbon Steel
Hazardous Approval:	ATEX, FM, CFM	Criticality:	Standard
Highlight:	100kg carbon steel load cell , high accuracy weighing module , SWB505 construction load cell

100kg SWB505 Carbon Steel Construction Load Cell Module with High Accuracy Weighing

Product Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	220 lb (100 kg)
Material	Zinc plated steel
Metrology	NTEP III 5M OIML C3
Load Cell	MTB, 3 m cable
Accuracy	Standard
Protection Rating	IP68/69k
Environment / Material	Normal / Carbon Steel
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard

Key Features

High accuracy compression weigh module for industrial applications
Zinc plated steel construction with IP68/69k protection rating
Certified for hazardous environments (ATEX, FM, cFM approved)
NTEP III 5M and OIML C3 metrology certifications
Includes MTB load cell with 3m cable

Product Description

The SWB505 compression weigh module is engineered for precision weighing in demanding industrial environments. Its robust carbon steel construction with zinc plating ensures durability, while the compression design allows direct installation to ground, piers, or structural beams.

This module is ideal for large-scale weighing applications including platform scales, truck scales, and tank/silo weighing systems. With a capacity range from 3kg to 300 tons, it provides reliable performance for both static and dynamic weighing operations.

Technical Specifications

Maximum Capacity	220 lb (100 kg)
Material	Zinc plated steel
Load Cell	MTB, 3 m cable
Accuracy	Standard
Protection Rating	IP68/69k
Hazardous Approvals	ATEX, FM, cFM
Metrology Certifications	NTEP III 5M, OIML C3

System Advantages

Static & Dynamic Weighing

Multipurpose weigh module delivers high accuracy for both static and dynamic applications. The self-aligning rocker pin ensures consistent repeatability.

Safety & Protection

Features 360° checking, built-in anti-uplift and down stops, with hazardous area approvals and IP68 stainless steel load cell for maximum reliability.

Easy Installation & Maintenance

Pre-aligned for quick installation with minimal lift required for load cell removal, reducing downtime during service.
