Name: Heavy-Duty SWC615 PM S3A Certified Load Cell Module with 90 Ton SS Construction
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWC615 PM SS 90T S3A
Availability: InStock

Home Products Mettler Toledo Load Cell

Heavy-Duty SWC615 PM S3A Certified Load Cell Module with 90 Ton SS Construction

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC615 PM SS 90T S3A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	198,000 Lb (90,000 Kg)
Material:	Stainless Steel, Grade 304	Metrology:	OIML C3, NTEP IIIL 10,000
Load Cell:	POWERCELL PDX	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX Zone 2 / 22 UL Division 2	Criticality:	Condition Monitoring
Highlight:	90 ton heavy-duty load cell , SWC615 PM S3A load cell , stainless steel load cell module

Heavy-Duty SWC615 PM S3A Certified Load Cell Module with 90 Ton SS Construction

Product Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	198,000 lb (90,000 kg)
Material	Stainless steel, grade 304
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	POWERCELL PDX
Accuracy	Standard
Protection Rating	IP68/69k
Environment / Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX Zone 2 / 22 UL Division 2
Criticality	Condition monitoring

Product Overview

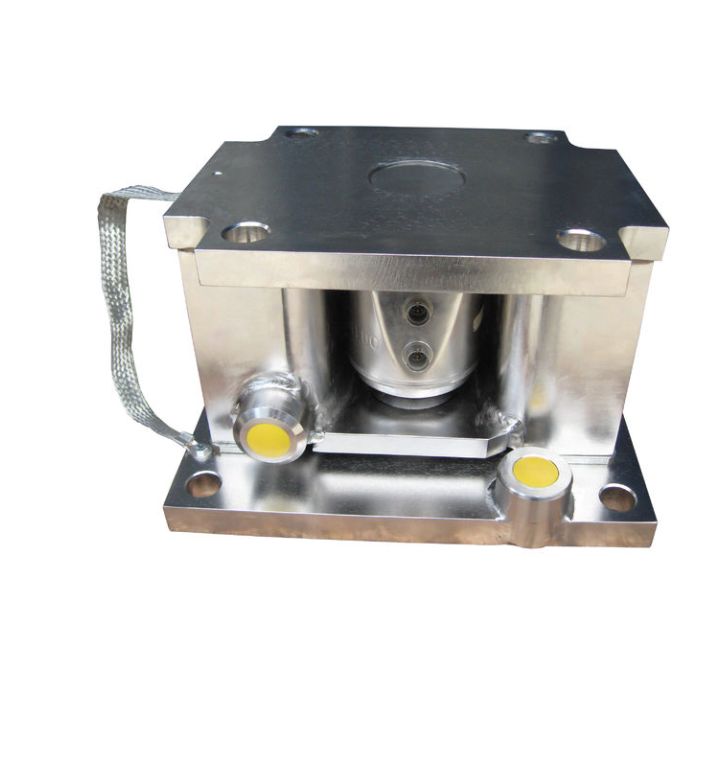

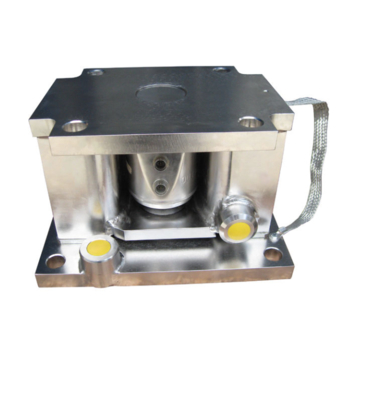

A robust compression weigh module designed for direct attachment to ground, piers, or structural beams. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.

Key Features

Multi-Purpose Application: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors. Features a high-accuracy, fully approved stainless hermetic load cell for all industrial applications.
Enhanced Safety & Protection: Includes 360° self-checking, dual lift-off & down-stops, ground strap, hazardous area approvals, and IP68-rated stainless steel load cell for maximum reliability.
Predictive Diagnostics: Monitors individual load cells for overload conditions, temperature fluctuations, breach detection, and zero drift to prevent system failures and measurement errors.

Technical Specifications

Material	Stainless steel, grade 304
Material Number	30057237
Maximum Capacity	198,000 lb (90,000 kg)
Protection Rating	IP68/69k
Environment/Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX Zone 2/22, UL Division 2
Load Cell	POWERCELL PDX
Accuracy	Standard
Metrology Certification	OIML C3, NTEP IIIL 10,000
