Name: 100T Capacity SWC515 Stainless Steel Weigh Module for Heavy-Duty Load Cell
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWC515 SS 100T
Availability: InStock

Home Products

100T Capacity SWC515 Stainless Steel Weigh Module for Heavy-Duty Load Cell

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC515 SS 100T

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	220,000 Lb (100,000 Kg)
Material:	Stainless Steel, Grade 304	Metrology:	OIML C3, NTEP IIIL 10,000
Load Cell:	0782/GD, 13 M Cable	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX, CSA, FM	Criticality:	Standard
Highlight:	100T stainless steel weigh module , heavy-duty load cell weigh module , SWC515 stainless steel load cell

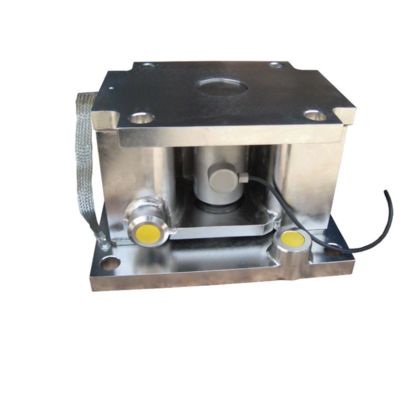

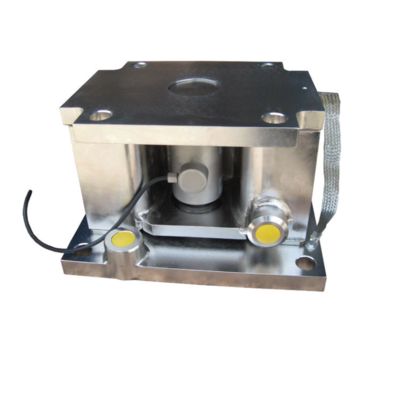

100T Capacity SWC515 Stainless Steel Weigh Module for Heavy-Duty Load Cell

Product Overview

A compression weigh module designed for direct attachment to ground, piers or structural beams. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper and silo weighing applications. Capacities range from 3 kg to 300 tons.

Key Features

Multi-Purpose Application: Suitable for static & dynamic tanks, hoppers, mixers & conveyors
High Accuracy: Features fully approved stainless hermetic load cell
Safety Features: 360° self-checking, dual lift-off & down-stops, ground strap
Durable Construction: IP68 stainless steel load cell with hazardous area approvals
Easy Installation: Lightweight, low profile design with flexible orientation

Technical Specifications

Product	Mettler Toledo Load Cell
Maximum Capacity	220,000 lb (100,000 kg)
Material	Stainless steel, grade 304
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	0782/GD, 13 m cable
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX, CSA, FM
Criticality	Standard
