Name: 50t SWC415 Industrial Load Cell Module PM Type with Durable Carbon Steel Housing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWC515 SS 100T
Availability: InStock

Home Products

50t SWC415 Industrial Load Cell Module PM Type with Durable Carbon Steel Housing

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC515 SS 100T

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	110,000 Lb (50,000 Kg)
Material:	Zinc Plated Steel	Metrology:	OIML C3, NTEP IIIL 10,000
Load Cell:	0782/GD	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Normal / Carbon Steel
Hazardous Approval:	ATEX, FM, IEC Ex	Criticality:	Standard
Cable:	13 M
Highlight:	50t industrial load cell , SWC415 PM load cell , carbon steel load cell module

50t SWC415 Industrial Load Cell Module PM Type with Durable Carbon Steel Housing

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	110,000 lb (50,000 kg)
Material	Zinc plated steel
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	0782/GD
Accuracy	Standard
Protection Rating	IP68/69k
Environment / Material	Normal / Carbon Steel
Hazardous Approval	ATEX, FM, IEC Ex
Criticality	Standard
Cable	13 m

Product Description

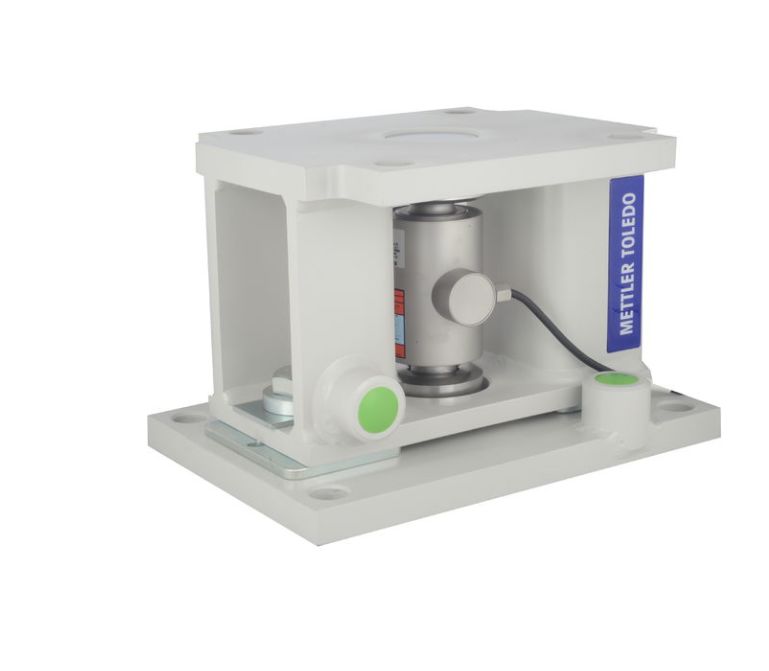

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied to it, and it can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.

Cost Efficient

Weigh module is designed for economic applications. With highly accurate, fully approved stainless load cells, it suits many applications.
Safety & Protection

Gain peace of mind with 360-degree self-checking, dual lift-off, hazardous approvals and an IP68/IP69K-protected load cell.
Ease of Installation

It is light, low profile and thanks to SafeLock aligned and rigidly locked for installation with or without the load cell installed.

Specifications

Material	Zinc plated steel
Material No	30315453
Maximum Capacity	110,000 lb (50,000 kg)
Protection Rating	IP68/69k
Environment / Material	Normal / Carbon Steel
Hazardous Approval	ATEX, FM, IEC Ex
Load Cell	0782/GD
Accuracy	Standard
Metrology	OIML C3, NTEP IIIL 10,000
