Name: 100T SWC415 Heavy-Duty PM Design Weigh Module for Carbon Steel Construction
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWC515 SS 100T
Availability: InStock

Home Products

100T SWC415 Heavy-Duty PM Design Weigh Module for Carbon Steel Construction

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWC515 SS 100T

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	220,000 Lb (100,000 Kg)
Material:	Zinc Plated Steel	Metrology:	OIML C3, NTEP IIIL 10,000
Load Cell:	0782/GD	Accuracy:	Standard
Protection Rating:	IP68/69k	Environment / Material:	Normal / Carbon Steel
Hazardous Approval:	ATEX, FM	Criticality:	Standard
Cable:	42.5 Ft (13 M)
Highlight:	heavy-duty weigh module , carbon steel weigh module , PM design load cell

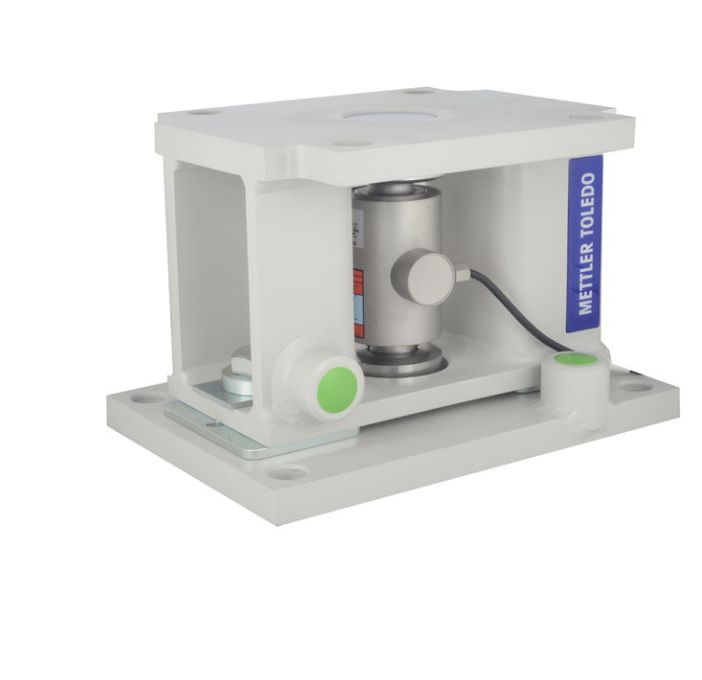

100T SWC415 Heavy-Duty PM Design Weigh Module for Carbon Steel Construction

Product Overview

A compression weigh module designed so that its top plate and base plate compress when weight is applied. It can be attached directly to the ground, piers, or structural beams. These modules are typically used in multiples under large platform scales such as truck and railroad track scales, as well as in tank, hopper, and silo weighing applications. Capacities range from 3 kg to 300 tons.

Key Features

Cost Efficiency

Economically designed weigh module with highly accurate, fully approved stainless load cells suitable for numerous applications.

Safety & Protection

Features 360-degree self-checking, dual lift-off protection, hazardous approvals, and an IP68/IP69K-rated load cell for maximum reliability.

Easy Installation

Lightweight, low-profile design with SafeLock technology for aligned and rigid installation, with or without the load cell installed.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	220,000 lb (100,000 kg)
Material	Zinc plated steel
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	0782/GD
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Normal/Carbon Steel
Hazardous Approval	ATEX, FM
Criticality	Standard
Cable	42.5 ft (13 m)
