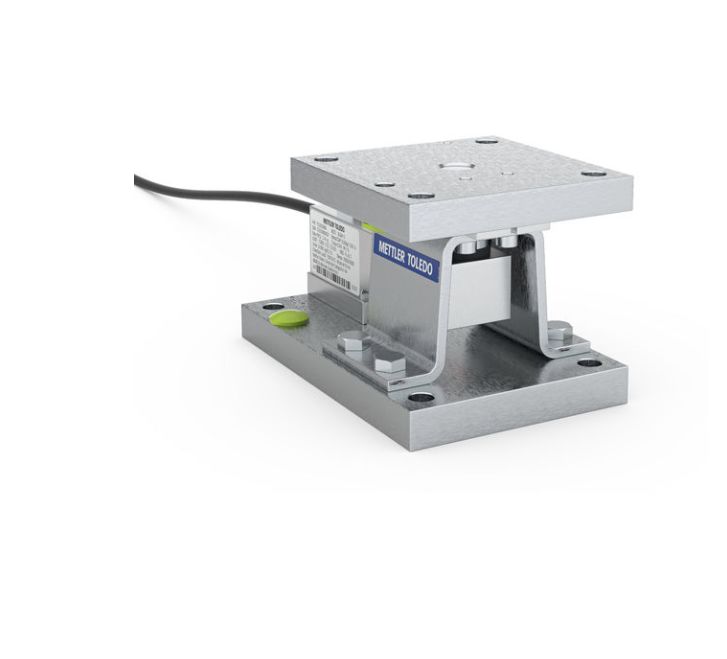

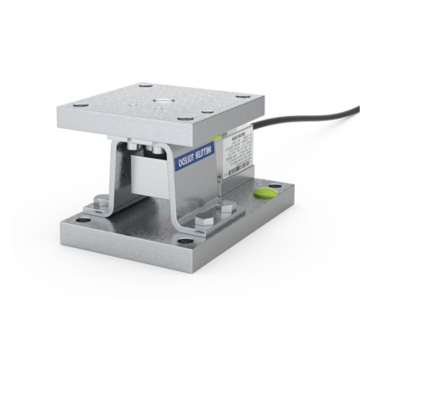

Name: 4400kg SWB405 Stainless Steel Weigh Module with Durable Load Cell with 10m Cable
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Weigh Module SWB405 4400kg 10m SS
Availability: InStock

Home Products Mettler Toledo Load Cell

4400kg SWB405 Stainless Steel Weigh Module with Durable Load Cell with 10m Cable

Product Details:

Place of Origin:	CHINA
Brand Name:	Mettler Toledo
Model Number:	Weigh Module SWB405 4400kg 10m SS

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Product:	Mettler Toledo Load Cell	Maximum Capacity:	10,000 Lb (4,400 Kg)
Material:	Stainless 304 Electropolish	Metrology:	OIML C3, NTEP III 5M
Load Cell:	SLB415	Accuracy:	Standard
Protection Rating:	IP68 NEMA 6	Environment / Material:	Wash-down / Stainless Steel
Hazardous Approval:	ATEX, FM	Criticality:	Standard
Cable:	10 M	Material No:	30830610
Highlight:	4400kg stainless steel weigh module , durable load cell with 10m cable , Mettler Toledo SWB405 weigh module

4400kg SWB405 Stainless Steel Weigh Module with Durable Load Cell with 10m Cable

Product Specifications

Product	Mettler Toledo Load Cell
Maximum Capacity	10,000 lb (4,400 kg)
Material	Stainless 304 Electropolish
Metrology	OIML C3, NTEP III 5M
Load Cell	SLB415
Accuracy	Standard
Protection Rating	IP68 NEMA 6
Environment / Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX, FM
Criticality	Standard
Cable	10 m
Material No	30830610

Key Features

Stainless steel construction for durability in harsh environments
IP68/NEMA 6 protection rating for wash-down applications
ATEX and FM certified for hazardous locations
Includes 10-meter cable for flexible installation
Meets OIML C3 and NTEP III 5M metrology standards

Product Overview

The SWB405 stainless steel weigh module features a compression design where weight application causes the top and base plates to compress together. This robust module can be directly mounted to ground, piers, or structural beams, making it ideal for large-scale weighing applications including truck scales, railroad track scales, and tank/hopper/silo weighing systems.

All Safety on Board

Includes comprehensive safety features such as anti-uplift protection, 360° checking, and down-stop protection to ensure secure tank weighing operations.

Easy Integration

SafeLock™ technology is integrated into the SWB405 MultiMount™ design, simplifying installation with all components pre-locked in optimal initial positions.

Reliable Weighing

The hermetically sealed SLB415 load cell with IP68 rating delivers dependable performance for demanding industrial applications.

Technical Specifications

Material	Stainless 304 Electropolish
Maximum Capacity	10,000 lb (4,400 kg)
Protection Rating	IP68, NEMA 6
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM
Load Cell	SLB415
Accuracy	Standard
Metrology	OIML C3, NTEP III 5M
Cable Length	10 m
